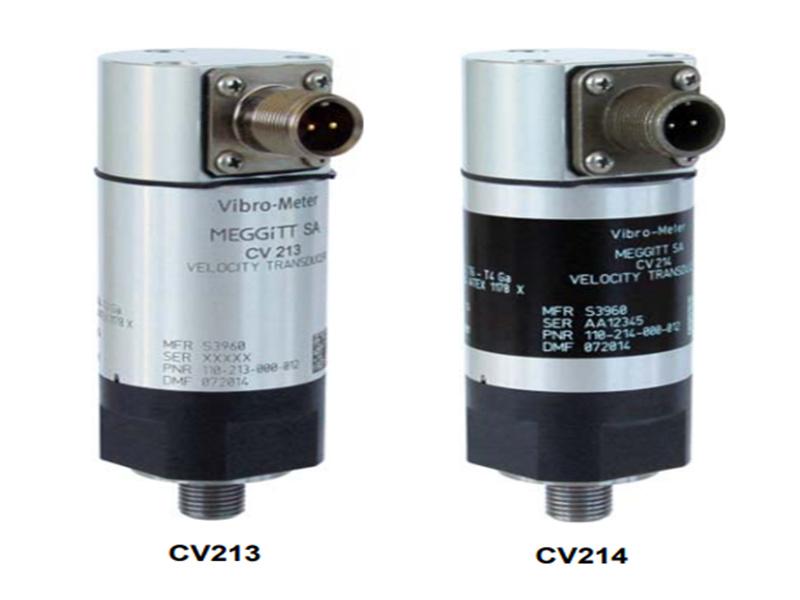

CV213 110-213-000-012 Velocity transducers

NEW AND ORIGIN ITEM IN STOCK

WITH ONE YEAR WARRANTY

Hope anyone enquire from us,pls click this sales6@nseauto.com
1. lower your support costs
2, Provide on-going availability of automation replacement parts
Quantity available: 1
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets

SPECIFICATIONS:

The CV213 and CV214 velocity transducers are designed to measure absolute vibration at low frequencies. When used with a cable assembly, the transducer can be connected directly to the monitoring electronics without the need for an additional signal conditioner and power supply. The two devices are similar in construction and performance, the only difference being that the CV213 is intended for high-temperature applications. Good sensitivity and rugged design make these devices suitable for all types of low-speed industrial machinery. Their anodised aluminium case and watertight sealed connector allow them to withstand damp and corrosive environments.

The transducer’s sensing element consists of a coil moving around a permanent magnet. This assembly produces a voltage directly proportional to the vibration velocity. The signal is generated without the need for an external power source, a feature that makes these devices suitable for portable measurement applications. Dedicated cable assemblies are available for each velocity transducer. The ED120 assembly is intended for the CV213 and the ED121 for the CV214. In very harsh industrial environments, the transducer should be installed with its cable assembly covered by a flexible protection tube (sheath) made of metal, for mechanical protection. For specific applications, contact your nearest Meggitt Sensing Systems representative.
