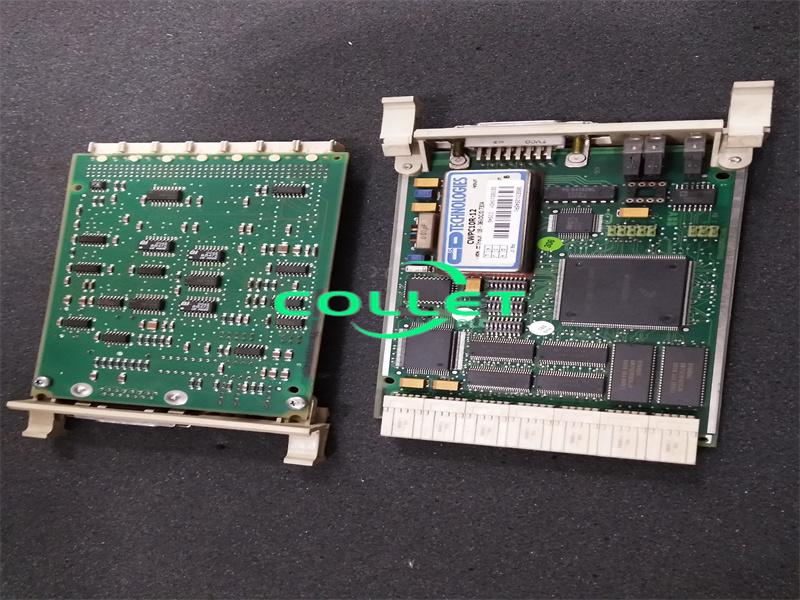

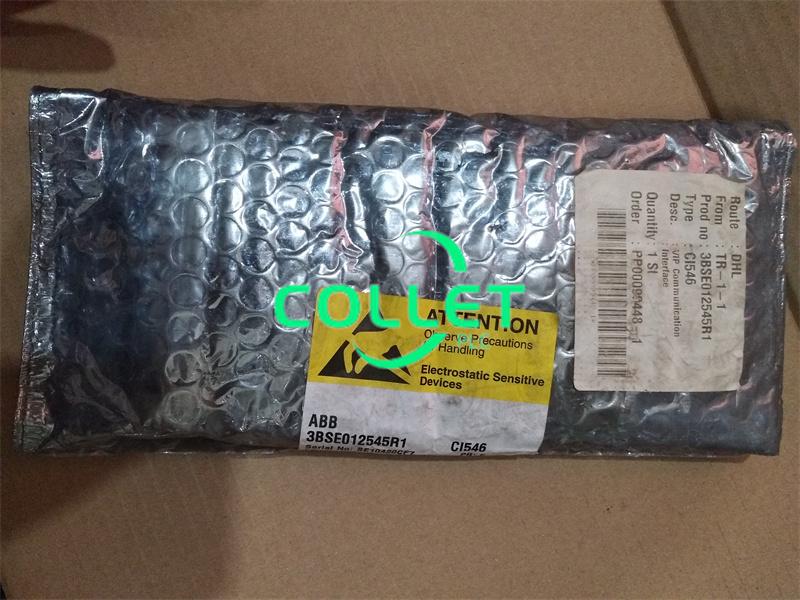

Manufacture |
ABB |
|
Model |
CI546 |
| PN No. |
3BSE012545R1 |
| Catalog | AC450 |
| Description |
VIP Communication Interfacer |
| Origin | Sweden/Malta/India |
| HS CODE |
85389091 |
| Dimension |
26*12*3 (CM) |
| Weight | 0.17 kg |
Description:
CI531 is a submodule destined to the Submodule Carrier SC510 and SC520 in Advant Controller 450 and Processor Module PM150 in Advant Controller 410. The two RS-232-C communication interfaces are generally used in the following applications: Printer, EXCOM, MasterView 320. See the controller documentation.
The communication channels support communication speeds up to 19.2 kbaud which is the limit set by the system software.Both channels run at this speed simultaneously.
The maximum communication distance without modem is 15 m.The modem signals which are supported are found in Table A-2 below.
Communication pins are short-circuit proof.
Frequently Asked Questions:
1.What is the payment term?
Wire transfer only.
2.When does the warranty period start?
One year from the time the client receives the goods.
Datasheet Link:
CI546 ABB 3BSE012545R1 VIP Communication Interface PDF Datasheet
