Manufacture |
ABB |
|
Model |

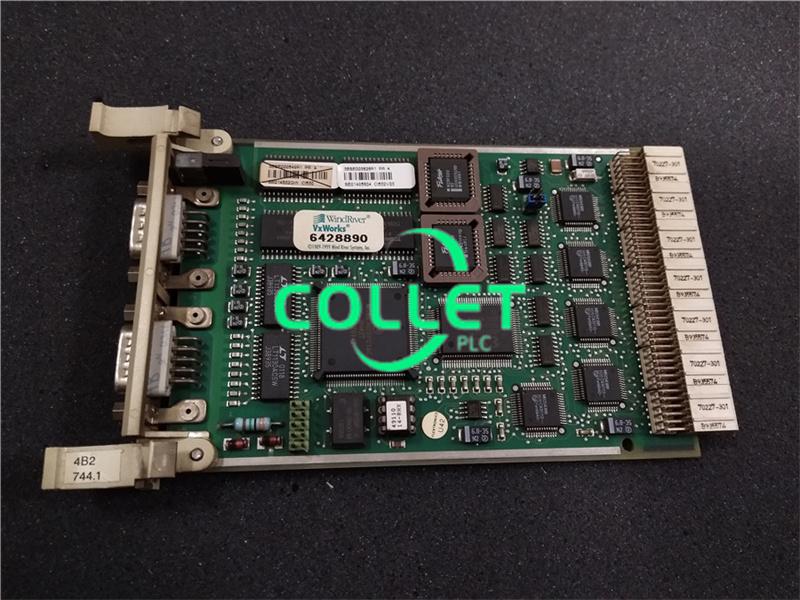

CI535V26 |
| PN No. |
3BSE022161R1 |
| Catalog | AC450 |
| Description |
RTU protocol |
| Origin | Sweden/Malta/India |
| HS CODE |
8537109070 |
| Dimension |
20*10*5 (CM) |
| Weight | 0.2 kg |
Description:
Controller Subrack
The controller subrack of Advant Controller 450, RF533, uses FutureBus+ (IEEE 896) as the
system bus. It is divided into three parts, as seen in Figure 4-2.
Underneath the subrack is always a fan unit RC527 attached. The subrack is also equipped with
a supervision unit TC520. The supervision unit is a general status collector to which also other
additional signals are connected:
• System bus signals RUN, LIVE, BAT, PFAIL
• Four general-purpose inputs 24 V
• One FANFAIL input
• One external system clock SYNC input (minute pulse)
• Two relay outputs controlled by RUN signal (Processor Module A and B)
Frequently Asked Questions:
1.What is the payment term?
Wire transfer only.
2.When does the warranty period start?
One year from the time the client receives the goods.
Datasheet Link:
CI535V26 ABB 3BSE022161R1 RTU protocol IEC870-5-101 Unbalanced PDF Datasheet
