CE620 Vibration 444-620-000-111 -A1-B100-C01 Piezoelectric Accelerometer

 • Voltage output signal: 100 or 500 mV/ g
 • Frequency response:
 0.5 to 14 000 Hz (100 mV/ g versions)
 0.2 to 3 700 Hz (500 mV/ g versions)
 • Temperature range:
 −55 to 120 °C (100 mV/ g versions)
 −55 to 90 °C (500 mV/ g versions)
 • Isolated electronics with internal shield for reduced noise and improved bias-voltage stability
 • Ground isolated from case
 • Available as a sensor only or with an integral cable
 • Available in standard versions and Ex versions certified for use in hazardous areas
  • Item NO.:

    CE620
  • Payment:

    T/T
  • Market Price:

    $8888
  • Product Origin:

    Switzerland
  • Color:

    Depends on material
  • Shipping Port:

    Xiamen
  • Lead Time:

    5-7 days
  • Goods Stock:

    10
  • Product weight:

    0.65 kg

Manufacture
Vibration
Model
CE620
PN No. 444-620-000-111 -A1-B100-C01
Catalog
NIL
Description
Piezoelectric  Accelerometer
Origin Switzerland
HS CODE 85389091
Dimension 12*11*8 (CM)
Weight 0.65 kg

Description:

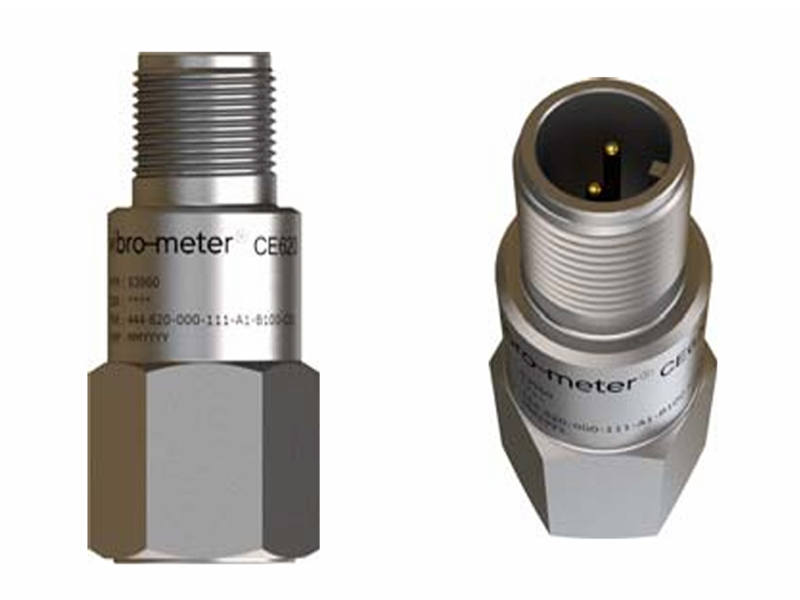

  The CE620 piezoelectric accelerometer with integrated electronics from Meggitt’s vibro-meter product line is a general-purpose vibration sensor designed for the monitoring and protection of machinery in harsh industrial environments.
 The CE620 is an industry standard IEPE (integrated electronics piezo electric) vibration sensor that requires a constant current power supply and provides a dynamic vibration output signal (AC voltage) on a bias level (DC voltage). It is available with a sensitivity of either 100 or 500 mV/ g.
 The CE620 is available as a sensor only or fitted with an integral cable that is protected by a stainless-steel overbraid. Sensor only versions allow one of a range of different cable assemblies to be used to connect the sensor to the monitoring system, depending on the application and environment.
 The CE620 is available in standard versions for use in standard (non-hazardous) areas and Ex versions for installation in hazardous areas (potentially explosive atmospheres).
 For specific applications, contact your local Meggitt representative.


Ordering Number:

Standard (non-Ex) versions:
 Type Designation Ordering number (PNR)
 CE620 100 mV/g sensor only version 444-620-000-111-A1-B100-C01
 CE620 500 mV/g sensor only version 444-620-000-111-A1-B500-C01
 CE620 100 mV/g integral cable version – 5 m cable length 444-620-000-211-A1-B100-C72-L05
 CE620 100 mV/g integral cable version – 10 m cable length 444-620-000-211-A1-B100-C72-L10
 Ex versions (for use in hazardous areas):
 Type Designation Ordering number (PNR)
 CE620 100 mV/g sensor only version 444-620-000-111-A2-B100-C01
 CE620 100 mV/g integral cable version – 5 m cable length 444-620-000-211-A2-B100-C72-L05
 CE620 100 mV/g integral cable version – 10 m cable length 444-620-000-211-A2-B100-C72-L10


Datasheet Link:

CE620 Vibration 444-620-000-111 -A1-B100-C01 Piezoelectric  Accelerometer Datasheet
