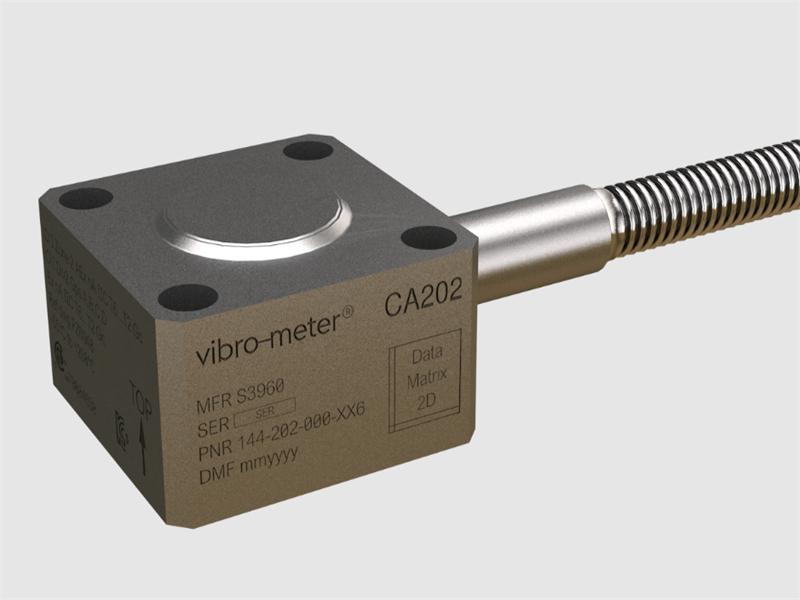

CA202 Vibration 144-202-000-125 Piezoelectric Accelerometer

The CA 202 accelerometer features a symmetrical shear mode polycrystalline measuring element which has internal case insulation.

Item NO.:
CA202
Payment:
T/T
Market Price:
$8888
Product Origin:
Switzerland
Color:
Depends on material
Shipping Port:
Xiamen
Lead Time:
5-7 days
Goods Stock:
5
Product weight:
0.135 KG/M

Inquiry now

product introduction

Manufacture	Vibration
Model	CA202
PN No.	144-202-000-125
Catalog	NIL
Description	Piezoelectric Accelerometer
Origin	Switzerland
HS CODE	85389091
Dimension	5.0822 (CM)
Weight	0.135 kg/m

Description:

CA202 Vibration 144-202-000-125 Ex version, 11 m cable length

The CA 202 accelerometer features a symmetrical shear mode polycrystalline measuring element which has internal case insulation. The transducer is designed for heavy-duty industrial vibration monitoring and measurement. The accelerometer is fitted with an integral cable protected by a flexible stainless steel tube welded to the case.
Features:

- Industrial vibration monitoring
- High sensitivity
- Differential output
- Hermetically welded
- Internal case insulation

Order Number:

Type	Designation	Ordering Number
CA202	Standard version, 3 m cable length	144-202-000-205
CA202	Standard version, 6 m cable length	144-202-000-215
CA202	Standard version, 11 m cable length	144-202-000-225
CA202	Standard version, 20 m cable length	144-202-000-235
CA202	Ex version, 3 m cable length	144-202-000-105
CA202	Ex version, 6 m cable length	144-202-000-115
CA202	Ex version, 11 m cable length	144-202-000-125
CA202	Ex version, 20 m cable length	144-202-000-135
CA202	Ex version with 3 m integral cable	144-202-000-106
CA202	Ex version with 6 m integral cable	144-202-000-116
CA202	Ex version with 1l m integral cable	144-202-000-126
CA202	Ex version with 20 m integral cable	144-202-000-136
CA202	Standard version with 3 m integral cable	144-202-000-206
CA202	Standard version with 6 m integral cable	144-202-000-216
CA202	Standard version with ll m integral cable	144-202-000-226
CA202	Standard version with 20 m integral cable	144-202-000-236

Frequently Asked Questions:

1.What are operating datas of CA202 144-202-000-125?

(at +23 °C ± 5 °C)Sensitivity (at 120 Hz):100 ± 5 pC / g
Dynamic measuring range (random):0.01 g to 400 g peak
Overload capacity (spikes):Up to 500 g peak
Linearity:± 1% between 0.01 g and 20 g peak, ± 2% up to 400 g peak
Transverse sensitivity:≤ 3%
Resonant frequency (mounted):20 kHz nominal
Frequency response:± 5% between 0.5 Hz and 5 000 Hz (lower cut off frequency is determined by conditioner used)
Capacitance (nominal)
•Pole to pole:4 500 pF for transducer + 105 pF / m of cable
•Pole to casing:10 pF for transducer + 210 pF / m of cable

2.What are general datas of CA202 144-202-000-125?

Input power requirements: None
Signal transmission: 2-pole system insulated from casing, charge output
Signal processor: Charge amplifier
