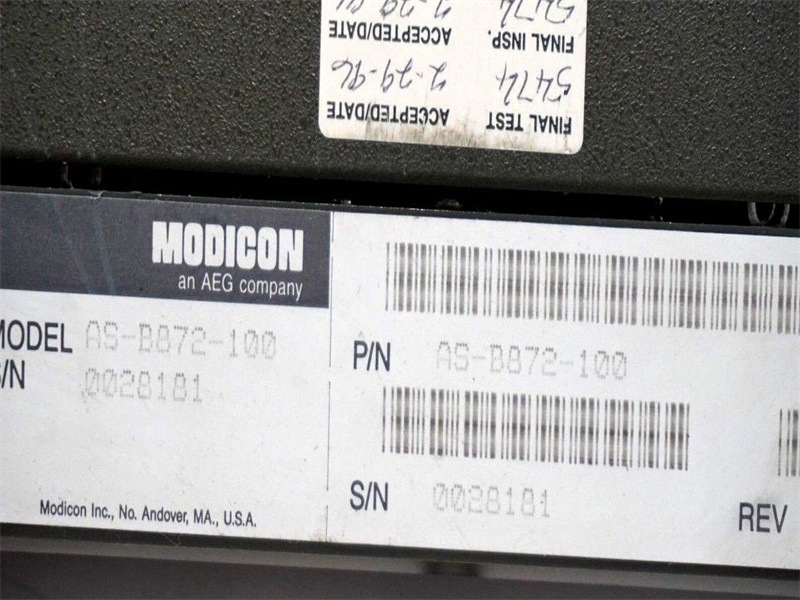

AS-B872-100 Schneider Analog Out Module Modicon

Description:

The MODICON ASP890300 800 I/O Remote I/O processor with Power provides an
interface between PLCs and 800 Series Remote I/O modules.Two half-duplex
ASCII ports are available.
The basic modes of operation are P890/P892/J890 replication (AS-P89X-000 and
AS-J890-X0X) and J892 emulation (AS-J892-X0X).
The ASP890300 Processor is compatible with all Schneider Electric controllers that
support the S908/CRP-type Remote I/O networks and all 800 Series I/O modules.
Remote I/O communication is accomplished over single or dual coaxial cable
networks. The number of drops and points supported depends on the system PLC.
Operating modes are rotary switch-selectable, and include single or dual RI/O cable.
These, in part, eliminate improper Comm Error LED indications when operating with
a single cable connecting the drop.
Rotary switch selectable operating modes, plus two executive reflash options are:
l J890/P890 single or dual RI/O cable operation
l J892 and P892 single or dual RI/O cable operation
l RTU or ASCII reflash modes
Executive software stored in flash memory may be updated through ASCII Port 1.
