Manufacture |
Schneider |
|
Model |
AS-B824-016 |
| PN No. |
AS-B824-016 |
|
Catalog |
Modicon |
|
Description |
24 Vdc (True High) output |
| Origin | U.S.A. |
| HS CODE |
85389081 |
| Dimension |
10*10*5 (CM) |
| Weight | 1.25 kg |
Description:

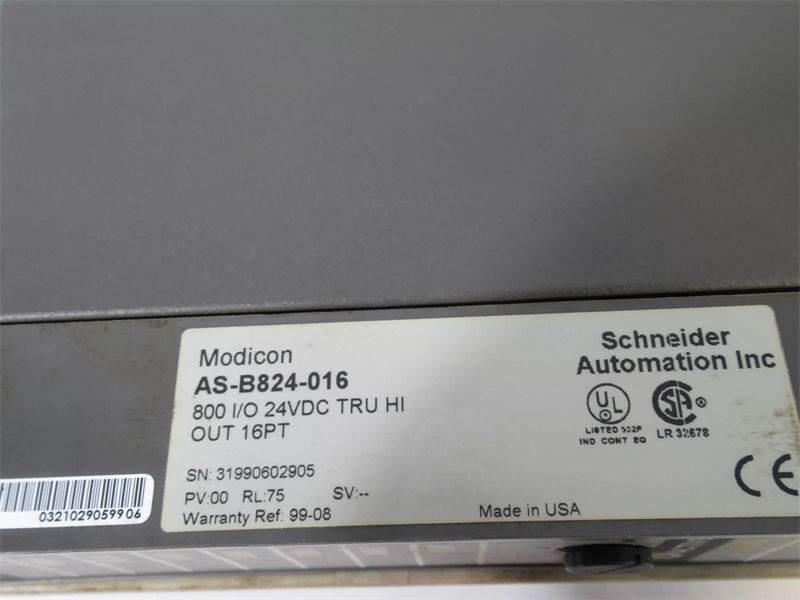

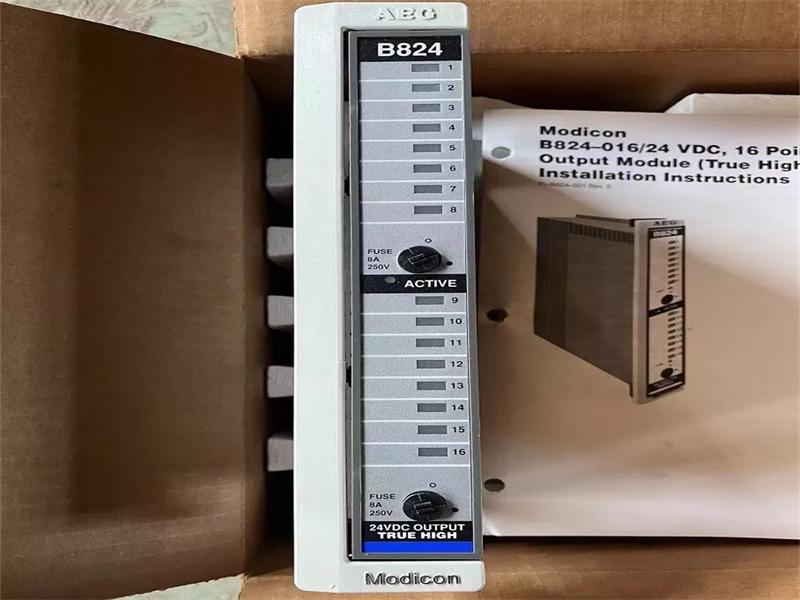

AS-B824-016 Schneider MODICON, 24 Vdc (True High) output
Terminal Connector: AS-8534-000
Number of Points: 16
Operating Voltage: 20 ... 28 Vdc
Number of Groups: 2
Outputs per Group: 8
Max. per Point: 2 A continuous; 5 A for 10 ms
Max. per Group: 6 A
Max. per Module: 12 A
Leakage Current: 1 mA (max.) @ 24 Vdc
Power Required
+5 V 32 mA
+4.3 V 260 mA
5 V 0 mA
External Power Supply (Excluding field load current): 24± 4 Vdc, 175 mA
Space Required: 1 slot
Frequently Asked Questions:
1.What is the Max. Response Time of AS-BDEP-208?
OFF to ON 1 ms
ON to OFF 1 ms
2.What is the payment term?
Wire transfer only.
3.When does the warranty period start?
One year from the time the client receives the goods.
Datasheet Link:
AS-B824-016 Schneider MODICON, 24 Vdc (True High) output PDF Datasheet
