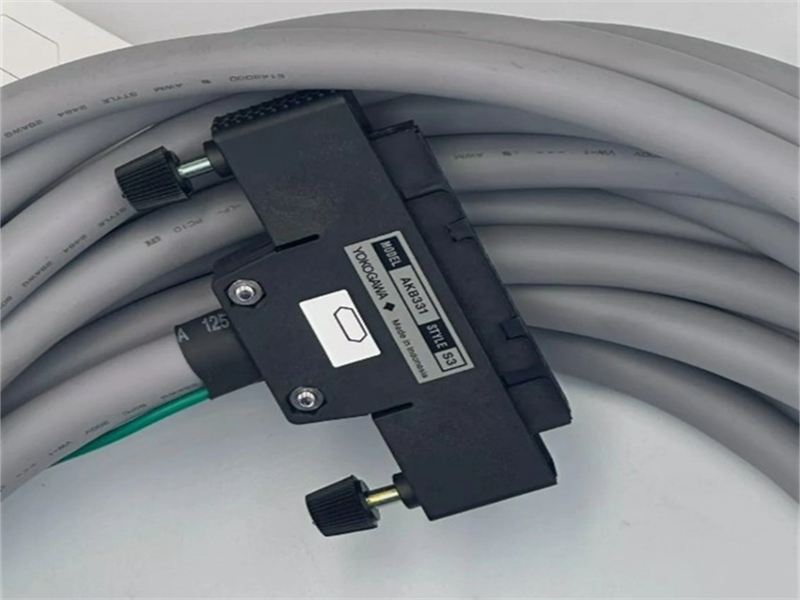

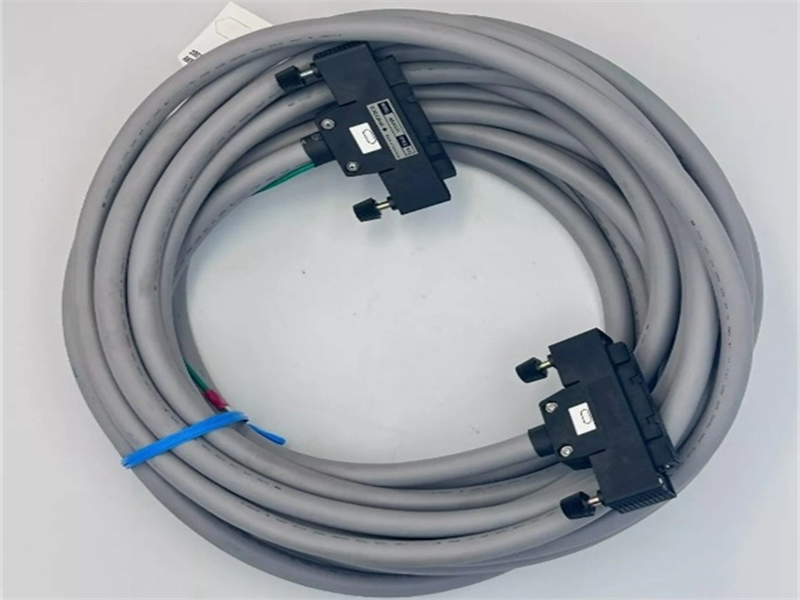

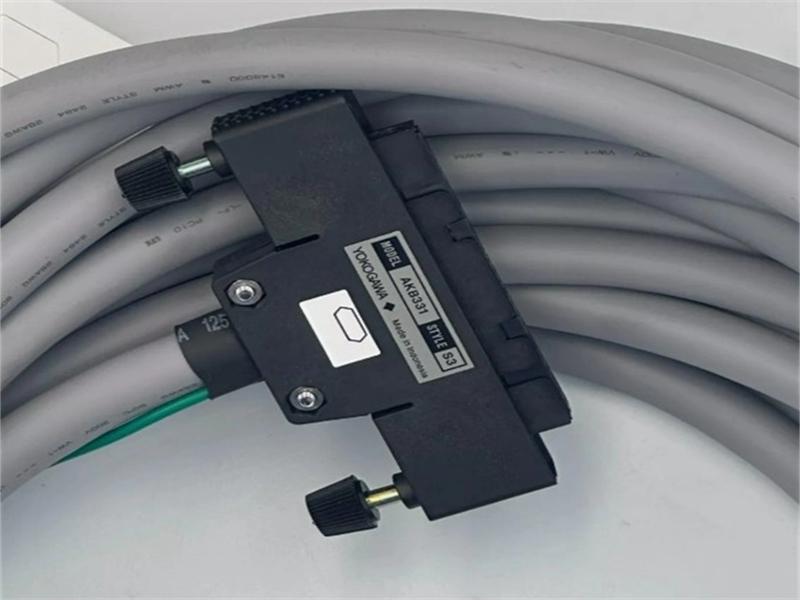

AKB331-M020 Yokogawa, Signal Cable (50-50 pins)

Description:

Model AKB331 Signal Cable (50-50 pins)
(for connection between SDV144/SDV531/SDV53A/SDV541/SAT145 and Terminal Board)
Suffix Codes
-M001 Length: 1 m
-M002 Length: 2 m
-M003 Length: 3 m
-M005 Length: 5 m
-M007 Length: 7 m
-M010 Length: 10 m
-M015 Length: 15 m
-M020 Length: 20 m
-M025 Length: 25 m
-M030 Length: 30 m
-M035 Length: 35 m
-M040 Length: 40 m
-M045 Length: 45 m
-M050 Length: 50 m
Option Codes
/SDV144 Special cable for SDV144 (for ProSafe-RS)
/SDV53L Special cable for SDV531-L (for ProSafe-RS)
/SDV53A Special cable for SDV53A (for ProSafe-RS)
/SDV541 Special cable for SDV541 (for ProSafe-RS)
/SAT14 Special cable for SAT145 (for ProSafe-RS)
Note: When connecting AKB331 with SDV531, SDV53A or SDV541, check if the cable length of AKB331 is proper or not, referring to “Terminal Board is connected” of “ LIMITATIONS ON DIGITAL OUTPUT MODULE CONNECTIONS” in “ProSafe-RS Outline of I/O Modulesv (for FIO)” (GS 32P06K60-01EN).
Note: A mechanism to prevent wrong type I/O module insertion is supported. When you select option code /SDV144, /SDV53L, /SDV53A, /SDV541 and /SAT14, the same model I/O module with /PRP prevention pin of false insertion option can be used. For example, AKB331-M003/SDV144 can be used only with SDV144 that have /PRP prevention pin of false insertion option.

Frequently Asked Questions:

1.What is the length of AKB331-M020?
20 m

2.When does the warranty period start?
One year from the time the client receives the goods.

Datasheet Link:

AKB331-M020 Yokogawa, Signal Cable (50-50 pins) PDF Datasheet
