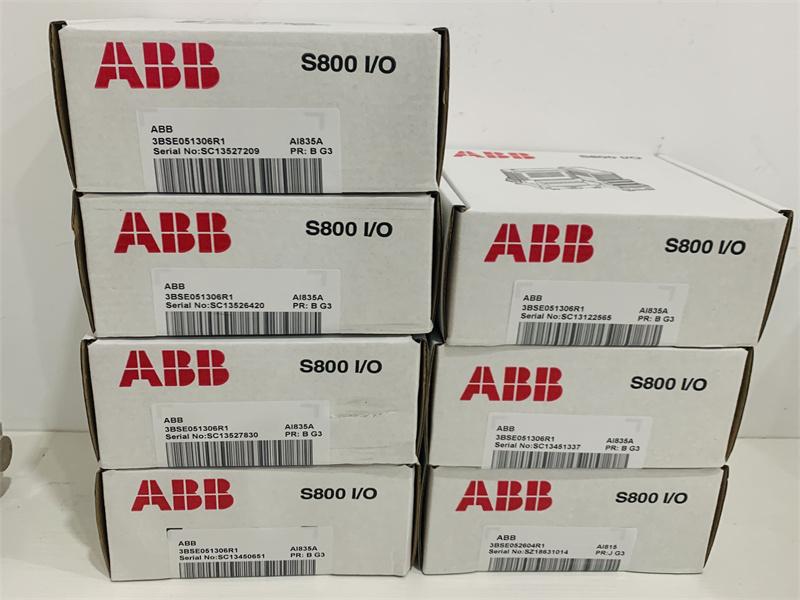

AI835A ABB 3BSE051306R1, Thermocouple/mV Input 8 ch

The AI835/AI835A provides 8 differential input channels for Thermocouple/mV measurements. Measurement ranges configurable per channel are: -30 mV to +75 mV linear, or TC Types B, C, E, J, K, N, R, S and T, for AI835A also D, L and U.

One of the channels (Channel 8) may be configured for “Cold Junction” (ambient) temperature measurements, thus serving as CJ-channel for Ch. 1...7. The junction temperature may be measured locally on the MTUs screw terminals, or on a connection unit distant form the device.

Alternatively, a fix junction temperature for the module may be set by the user (as parameter) or for AI835A also from the application. Channel 8 may be used in the same manner as Ch. 1...7 when no CJ-temperature measurement is needed.

Features and benefits
-8 differential input channels for thermocouple/mV.
-Channel 8 can be designated as the CJ-channel (4-wire Pt100 RTD)
-Variety of thermocouples with the following characteristics: B, C, E, J, K, N, R, S and T for AI835A also D, L and U
-15 Bit resolution (A/D)
-Inputs are monitored for wire-break open-circuit

Frequently Asked Questions:

1.What is the current consumption in +5 V Modulebus? And +24 V Modulebus?
Current consumption +5 V Modulebus: 75 mA
Current consumption +24 V Modulebus: 50 mA

2. What temperature is the module operating and stored?
Temperature, Operating 0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C
Temperature, Storage -40 to +70 °C (-40 to +158 °F)

Datasheet Link:

AI835A ABB 3BSE051306R1, Thermocouple/mV Input 8 ch PDF Datasheet
