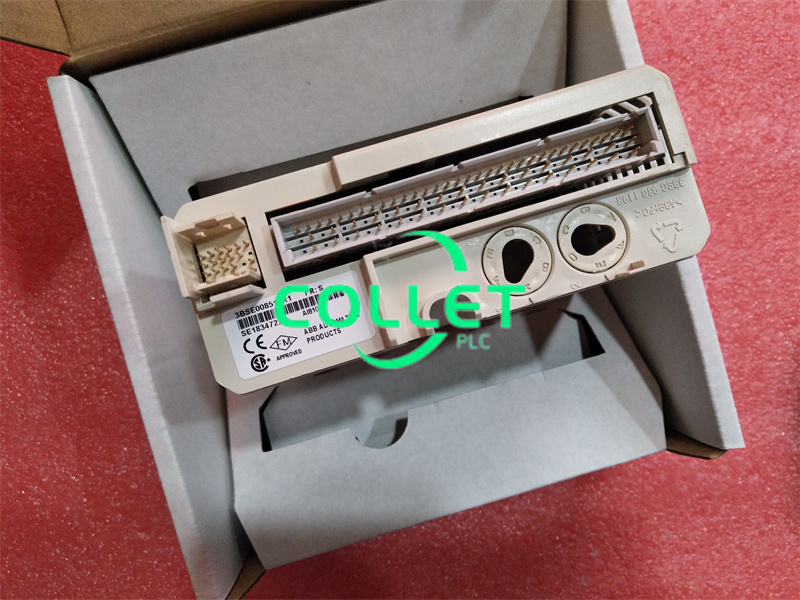

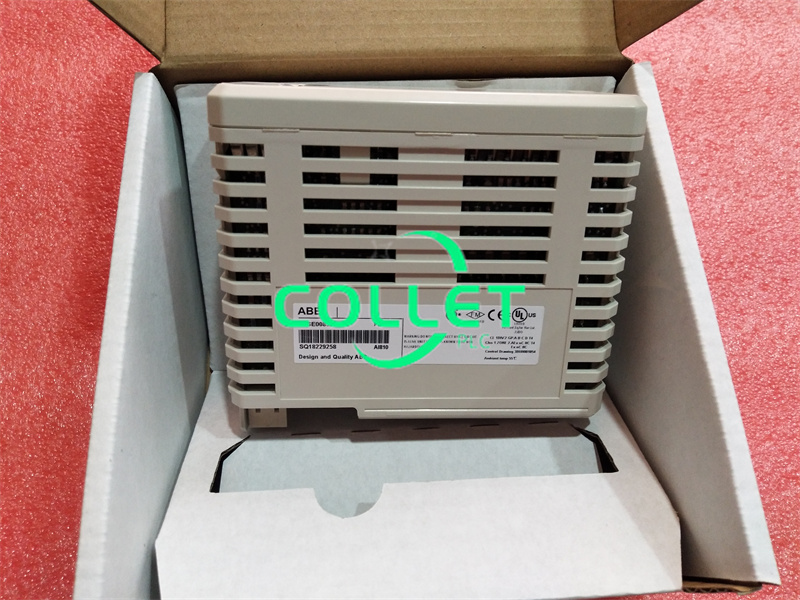

Manufacture |
ABB |
|
Model |
AI810 |
| PN No. |
3BSE008516R1 |
| Catalog |
S800 I/O |
| Description |
Analog Input Module |
| Origin | Sweden/Malta/India |
| HS CODE |
8537109070 |
| Dimension |
15*10*3 (CM) |
| Weight | 0.4 kg |
Description:
The AI810 Analog Input Module has 8 channels. Each channel can be either a voltage or current input. The current input is able to handle a short circuit to the transmitter supply at least 30 V d.c without damage. Current limiting is performed with a PTC resistor. The input resistance of the current input is 250 ohm, PTC included.
The voltage input is able to withstand an over or undervoltage of at least 30 V d.c. Input resistance is 290k ohm. Transmitter supply can be connected to L1+, L1- and/or L2+, L2-.
Features and benefits
8 channels for 0...20 mA, 4...20 mA, 0...10 V or 2...10 V d.c., single ended unipolar inputs
1 group of 8 channels isolated from ground
12 Bit resolution
Input shunt resistors protected to 30 V by PTC resistor
Analog inputs are short circuit secured to ZP or +24 V
The input withstand HART communication.
Frequently Asked Questions:
1.What is input impedance of AI810?
290 kΩ (voltage input)
230 - 275 kΩ (current input)
2.What is Temperature drift AI810?
Voltage: Typ. 70 ppm/°C Max. 100 ppm/°C; Current: Typ. 50 ppm/°C Max. 80 ppm/°C
Datasheet Link:
AI810 ABB 3BSE008516R1, Analog Input Module PDF Datasheet
