Manufacture |
ABB |
|
Model |

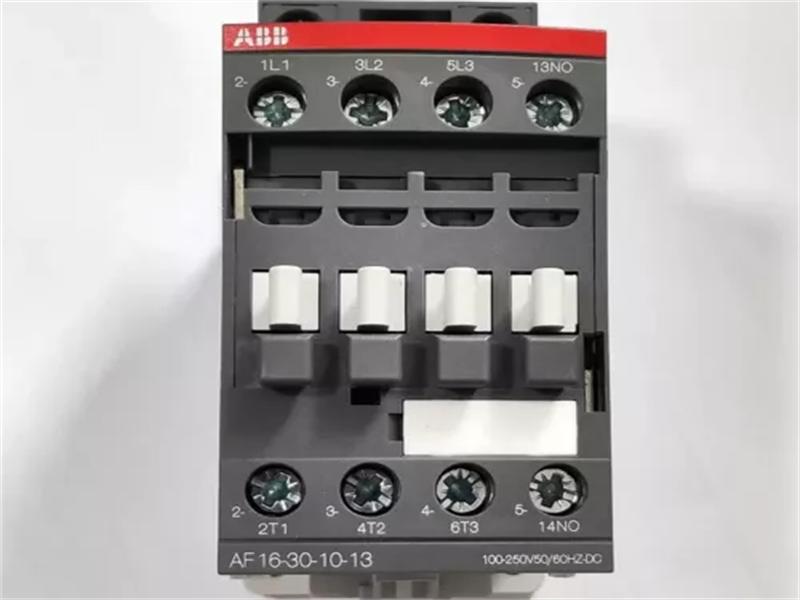

AF16-30-10-13 |
| PN No. |
1SBL177001R1310 |
| Catalog | AF Contactors |
| Description |
100-250V50/60HZ-DC Contactor |
| Origin | Sweden/Malta/India |
| HS CODE |
85389091 |
| Dimension |
4.5*7.7*8.6 (CM) |
| Weight | 0.27 kg |
Description:
The AF16-30-10-13 is a 3 pole - 690 V IEC or 600 UL contactor with 1 built-in auxiliary contact and screw terminals, controlling motors up to 7.5 kW / 400 V AC (AC-3) or 10 hp / 480 V UL and switching power circuits up to 30 A (AC-1) or 30 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Frequently Asked Questions:
1.What is Rated Operational Voltage?
Auxiliary Circuit 690 V
Main Circuit 690 V
2.What is Rated Frequency?
Auxiliary Circuit 50 / 60 Hz
Control Circuit 50 / 60 Hz
Main Circuit 50 / 60 Hz
Datasheet Link:
AF16-30-10-13 ABB 1SBL177001R1310, 100-250V50/60HZ-DC Contactor PDF Datasheet
