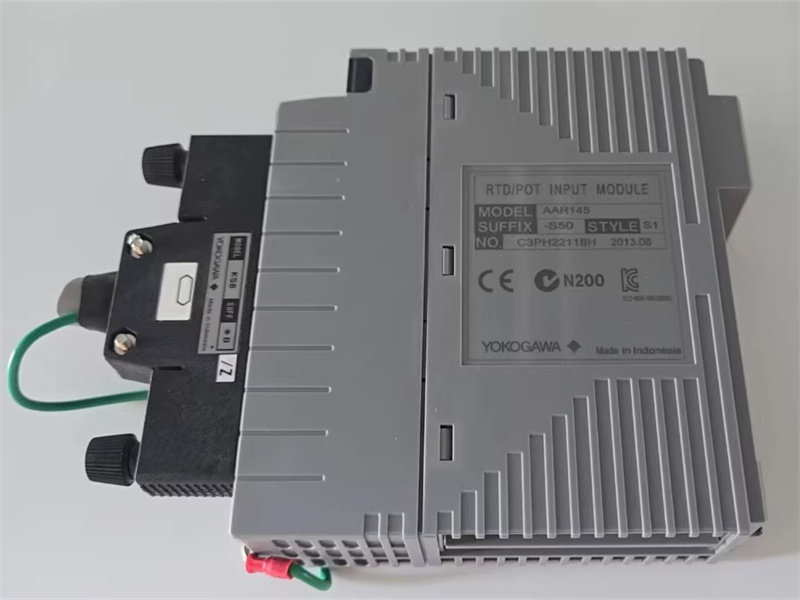

AAR145-S50 Yokogawa, TC/RTD Input Modules (Isolated Channels)

Description:

AAR145-S50 is a TC/RTD Input Modules (Isolated Channels), manufactured by Yokowaga.

TC/RTD Input Modules (Isolated Channels) receive signals from mV, thermocouple (TC), RTD, and potentiometer (POT), and they are isolated between the field and the system as well as in between each channel. They can be used in dual-redundant configuration.
Specifications:
Number of input channels:16
Input signal:
RTD: JIS C1604:1997 (*3), IEC751:1995 Pt100
(3-wire type)
POT: Total resistance 100 Ω to 10 kΩ
Span resistance:
50 % or larger of total resistance
Switching input signals:RTD/POT can be selected individually for CH1 to CH16.
Allowable input voltage:±5 V
Withstanding voltage:Between input and system: 500 V AC (for single card: 1500 V AC), For 1 minute
Between input channels: 200 V AC, For 1 minute
Input resistance
Power ON:1 MΩ or larger
Power OFF:1 MΩ or larger
Accuracy:RTD: ±150 mΩ / POT: ±0.2 %/FS
Allowable total resistance of signal source plus wiring:150 Ω or less (wiring resistance per wire) (*4)
Measurement current:RTD: 1 mA
Burn-out:All channels can be set together; Setting: not available/available (UP/DOWN); Detection time: 60 s
Temperature drift:RTD: ±0.3 Ω/10 °C / POT: ±0.4 %/10 °C
Maximum current consumption: 350 mA (5 V DC)

Frequently Asked Questions:

1.What is the specific description of AAR145-S50?
RTD/POT Input Module (16-channel, Isolated channels)
Standard type
With no explosion protection
Basic type

2.What is switchstanding voltage of AAR145-S50?
Between input and system: 500 V AC (for single card: 1500 V AC), For 1 minute
Between input channels: 200 V AC, For 1 minute

Datasheet Link:

AAR145-S50 Yokogawa, TC/RTD Input Modules (Isolated Channels) Datasheet
