Manufacture |
Vibration |
Model |
204-607-041-01 |
PN No. |
204-607-041-01 |
Catalog |
NIL |
Description |
Card |
Origin |
Switzerland |
HS CODE |
85389091 |
Dimension |
18*12*3 (CM) |
Weight | 0.4 kg |
NEW AND ORIGIN ITEM IN STOCK
WITH ONE YEAR WARRANTY
Hope anyone enquire from us,pls click this sales6@nseauto.com
1. lower your support costs
2, Provide on-going availability of automation replacement parts
Quantity available: 1
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
Desceiption:
This proximity system allows contactless
measurement of the relative displacement of moving
machine elements. The system is based around a
TQ 422 or TQ 432 non-contacting transducer and its
matching IQS 452 signal conditioner. Together, these
form a calibrated proximity system in which each
component is interchangeable. The system outputs a
voltage or current proportional to the distance
between the transducer tip and the target (e.g.
machine shaft).
Both the TQ 422 and the TQ 432 are specially
designed for high-pressure applications, with the
transducer tip withstanding pressures of up to 100 bar.
This makes them particularly suitable for measuring
relative displacement or vibration on submerged
pumps and various types of hydraulic turbines (e.g.
Kaplan and Francis).
The active part of the transducer is a coil of wire that is
moulded inside the tip of the device, which is made of
PEEK (polyetheretherketone). The transducer body is
made of stainless steel. The target material must, in all
cases, be metallic.
The transducer body is available only with metric
thread. The TQ 432 version is intended for reversemount
applications. The TQ 422/432 has an integral
coaxial cable, terminated with an AMP-type connector.
Various cable lengths (integral and extension) may be
ordered.
The IQS 452 signal conditioner contains an HF
modulator/demodulator that supplies a driving signal
to the transducer. This generates the necessary
electromagnetic field used to measure the gap. The
conditioner circuitry is made of high-quality
components and is mounted in an aluminium
extrusion.

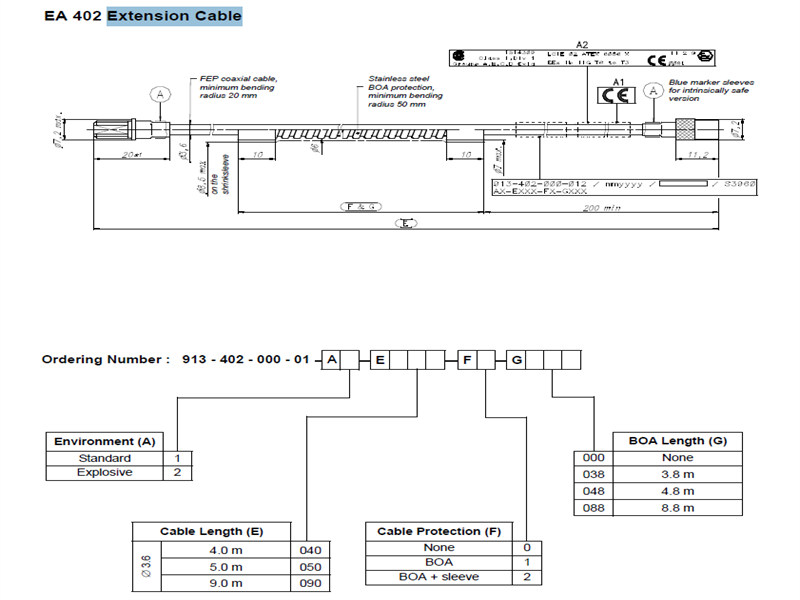

The TQ 422/432 transducer can be matched with a
single EA 402 extension cable. Optional junction
boxes and housings offer mechanical protection of the
integral and extension cable connectors.
The proximity system is powered by associated
processor modules or a rack power supply.
DESCRIPTION
