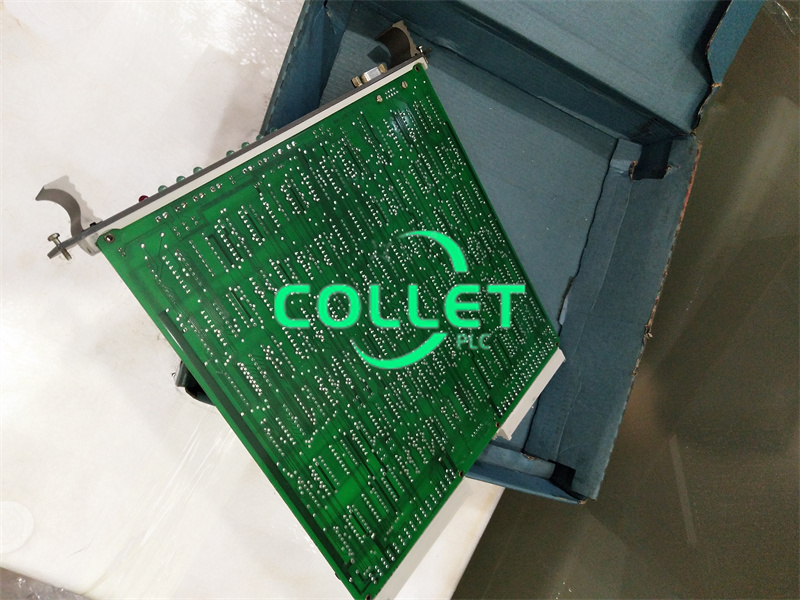

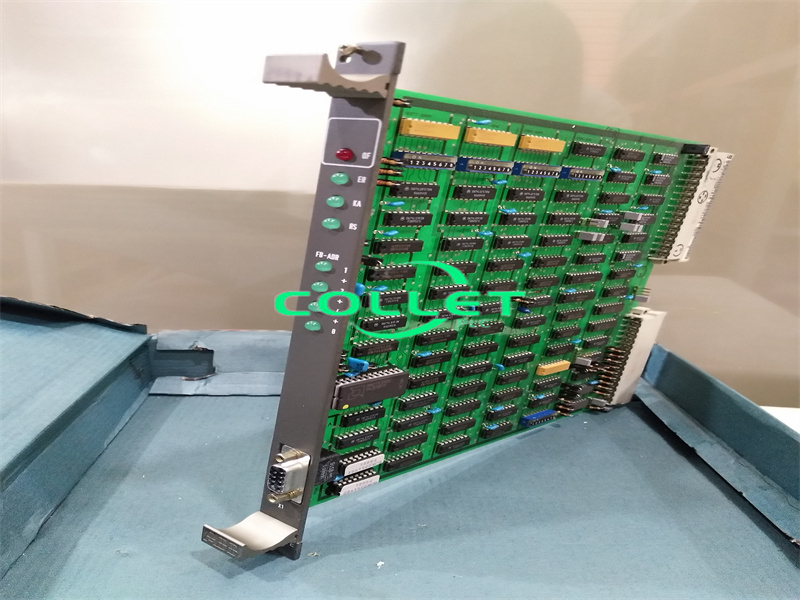

Manufacture |
ABB |
|
Model |
88VK01B-E |
| PN No. |
GJR2312200R1010 |
|
Catalog |
Advant OCS with Master SW |
|
Description |
Coupling Module |
| Origin | Sweden |
| HS CODE |
85389099 |
| Dimension |
1.98*0.2*2.61 (CM) |
| Weight | 0.55 kg |
Description:
If the drive is linked to several motors, it is crucial to use a distinct circuit breaker or fuses for each motor cable and motor to safeguard against overload.
As mandated by regulations, the motor must be shielded from thermal overload, and the current must be disconnected when an overload is identified.
The drive features a motor thermal protection function that guards the motor and disconnects the current when required. Contingent upon a drive parameter value, this function either supervises a computed temperature value (based on a motor thermal model) or an actual temperature indication offered by motor temperature sensors.
sheet Link:
88VK01B-E ABB GJR2389800R1210 Coupling Module PDF Datasheet
