Manufacture |
ABB |
|
Model |

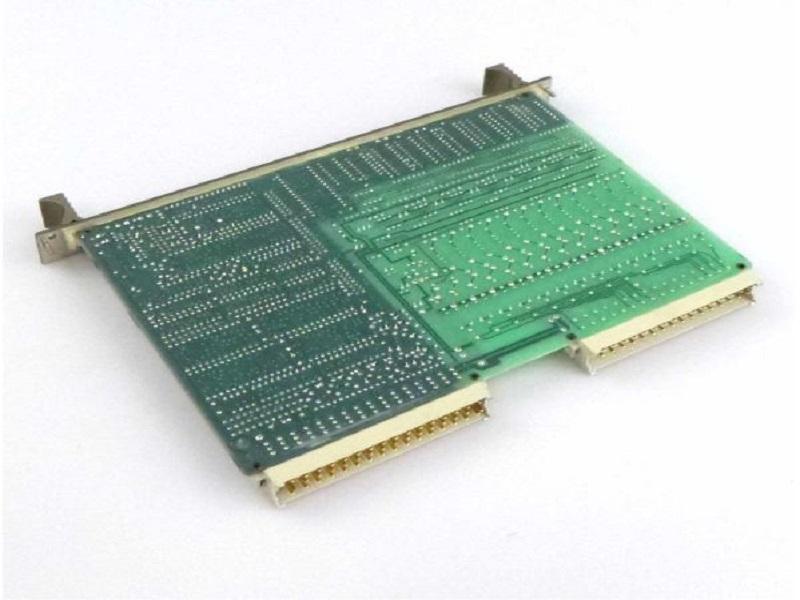

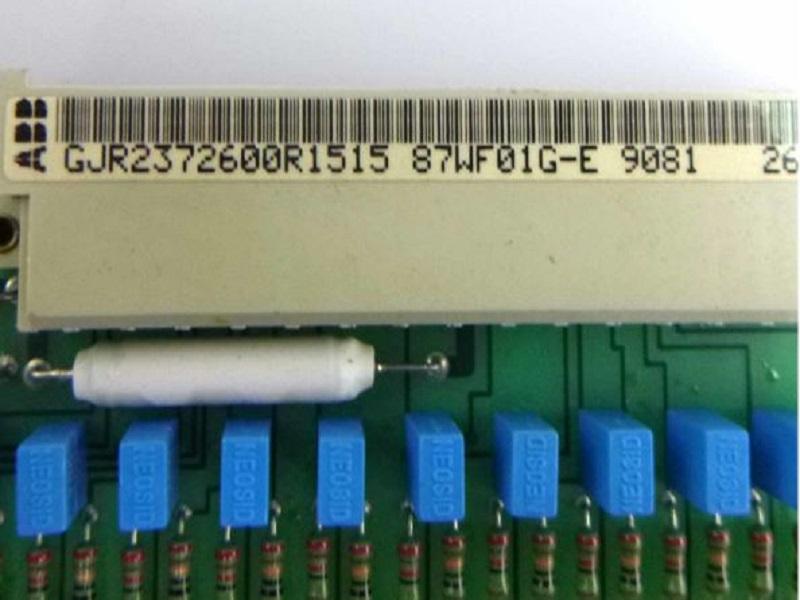

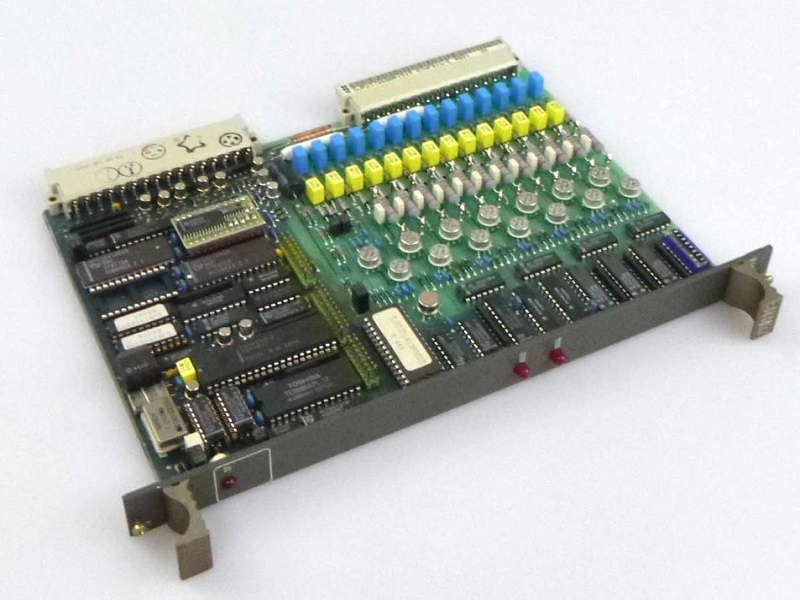

87WF01G-E |
| PN No. |
GJR2372600R1515 |
|
Catalog |
Advant OCS with Master SW |
|
Description |
Control I/O Module |
| Origin | Sweden |
| HS CODE |
85389099 |
| Dimension |
1.98*0.2*2.61 (CM) |
| Weight | 0.55 kg |
Description:
The module serves to couple control modules to the controlroom. lt is used whenever the push.button commands to thecontrol modules or lamp signals from control modules aretransferred via the bus.
The module incorporates four function units with three push.button inputs and three lamp outputs each. Two function unitscan in each case be interconnected. Such a combination en.ables the module to communicate with control modules havingfour pushbutton inputs and four lamp outputs.
Pushbutton commands and lamp testing can be released ei-ther jointly for all function units through hardware inputs orseparately for each function unit through the bus.
By altering a plug in jumper each module output can be indi.vidually changed over from lamp operation to LED operation(see “Annunciation functions").
sheet Link:
87WF01G-E ABB GJR2372600R1515 Control I/O Module PDF Datasheet
