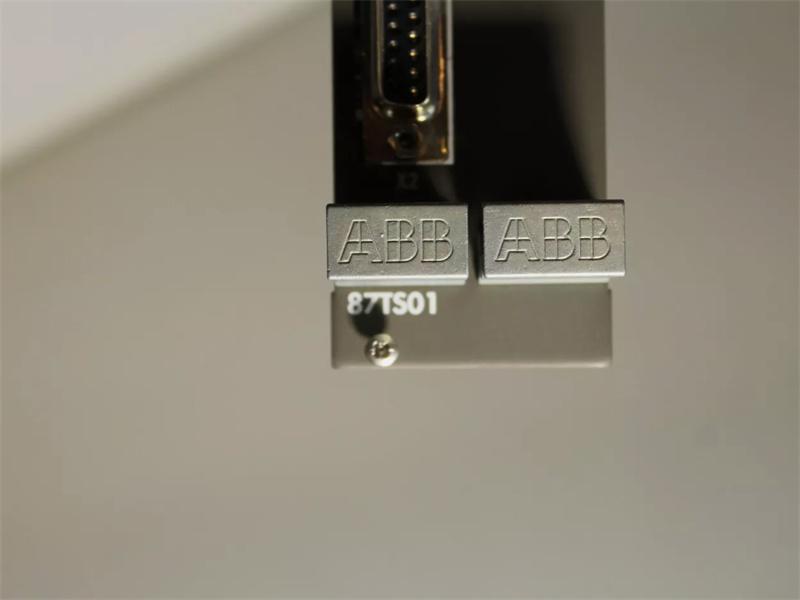

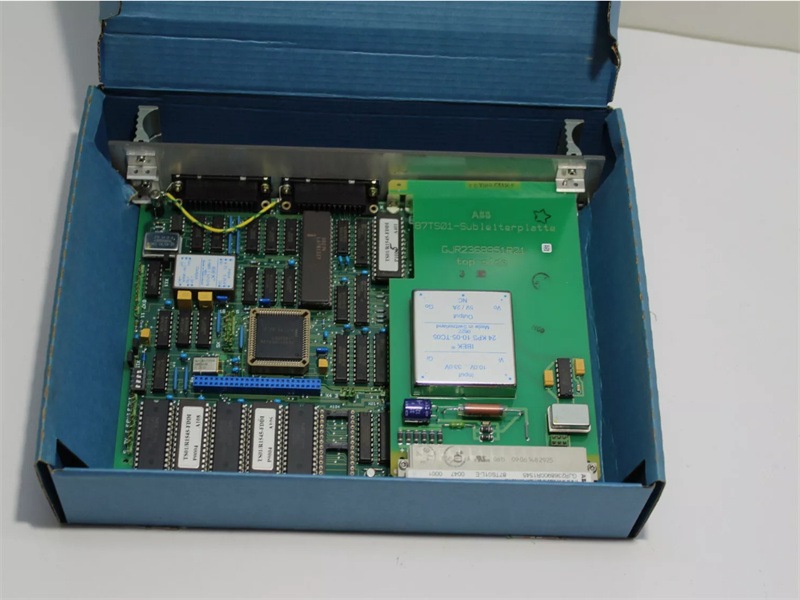

Manufacture |
ABB |
|
Model |
87TS01 |
| PN No. |
87TS01 |
|
Catalog |
PROCONTROL P |
|
Description |
Coupling Module |
| Origin | Sweden |
| HS CODE |
85389099 |
| Dimension |
1.98*0.2*2.61 (CM) |
| Weight | 0.55 kg |
The module can be used in any station belonging to the PROCONTROL bus system using a redundant 24 V module supply (starting with 89MS01/R0200 or 89MS02/R0100). lt isequipped with a standard interface for the PROCONTROL station bus.
This module requires 2 divisions for mounting space. lt can be plugged into subrack slots with address wiring 1 through 58 for the station bus.
The module uses a standard interface for participating in data communication within the PROCONTROL system.
The telegrams received from the station bus are checked for error-free transmission.
Using a serial RS 232c interface, the module is capable of receiving instructions and data coming from a computer in accordance with a defined protocol, as well as transferring instructions and data to a computer.
sheet Link:
87TS01 ABB Coupling Module PDF Datasheet
