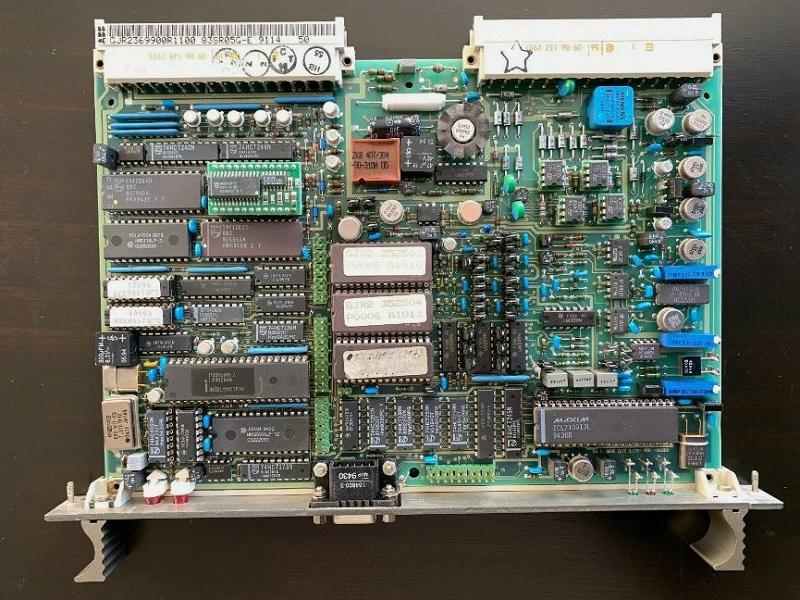

83SR05E ABB GJR2369900R1100 Controller for Single Functions

The module is used for stored ---program analog control of a process variable. The module incorporates a continuous output for correcting variable output. The following actuators can be activated:
--- electro ---hydraulic actuators
--- electro ---pneumatic actuators
--- motor ---driven actuators
With electro ---hydraulic or electro ---pneumatic actuators, positioning is performed locally directly at the transducer. With motor ---driven actuators, positioning is performed in a continuously operating power electronic unit (type PE01 or PD02 of Messrs. Hartmann und Braun).
The basic module version is described in the following module description. The capabilities of the individual versions are dealt with in the corresponding application descriptions and functional block descriptions.

The module can be plugged into every multi ---purpose processing station of a PROCONTROL bus system. It incorporates a standard interface to the PROCONTROL station ---bus.

The telegrams received via the station ---bus are checked by the module for error ---free transfer on the basis of their parity bits.

The telegrams sent from the module to the station ---bus are provided with parity bits to ensure error ---free transfer.

The module requires the following voltages for communication with the operator’s console, the process and the switchgear:
US

Operating voltage +24 V
branched internally to supply the following elements:
US1 Pushbuttons, operator’s console
US2 Process contact transmitters (e.g. limit switches)
US3 Power electronic contact transmitter
UV Auxiliary voltage ---24 V for increasing the communication voltage for contact inputs
UM

+24 V annunciation voltage for monitoring and signalling failure of the operating or communication voltage.
The module terminals connected to UM are short ---circuit ---proof. Therefore, this voltage is not fuse ---protected in the module.
If UM fails, the analog control function of the module remains fully effective. The voltages US1, US2 and US3 are protected in the module by PTC resistors and, therefore, do not require separate fuses.

The operating voltage US and the external logic signals are related to conductor Z. The operating voltages UD+ and UB are related to conductor ZD.

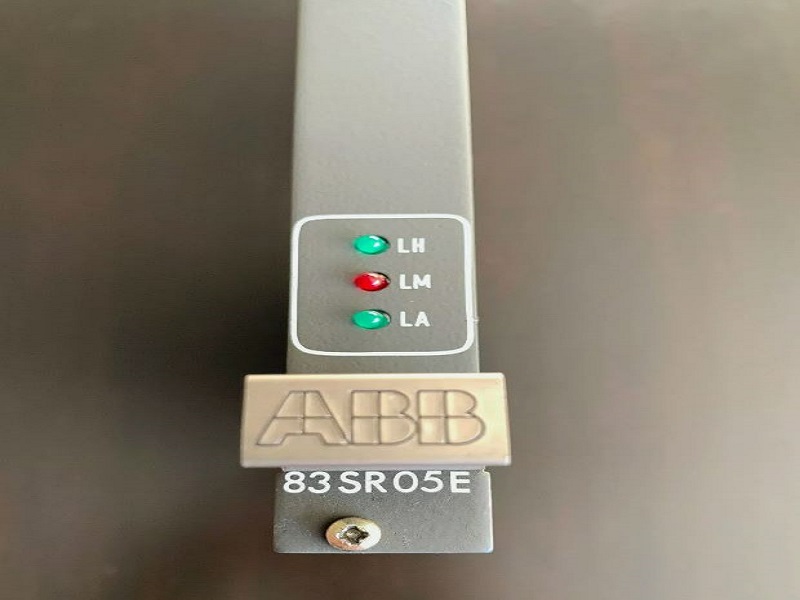

The following annunciations are indicated at the front of the module via light ---emitting diodes.:
--- Simulation SIM
--- Module disturbance ST
--- Annunciations to the operator’s console
Annunciation MANUAL (LH)
Annunciation AUTOMATIC (LA)
Disturbance annunciation (LM)
