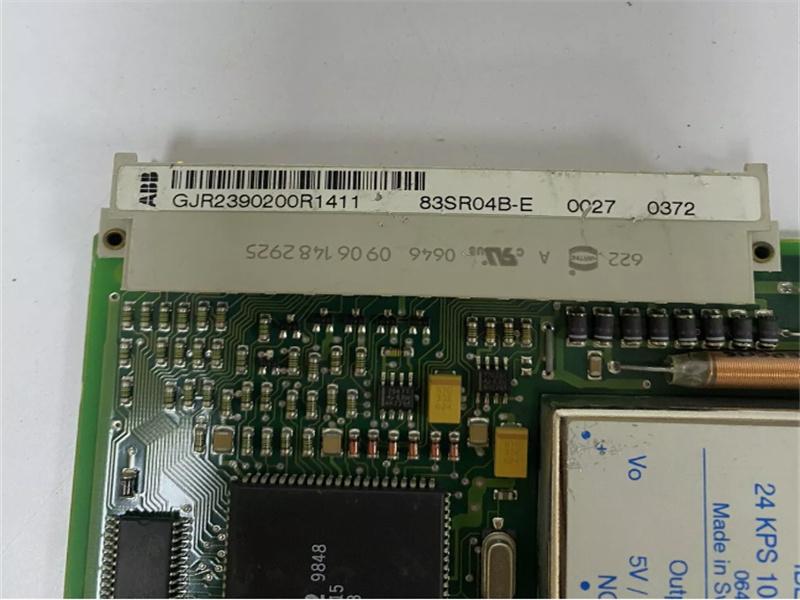

Manufacture |
ABB |
|
Model |
83SR04B-E |
| PN No. |
GJR2390200R1210 |
|
Catalog |
Advant OCS with Master SW |
|
Description |
Binary Control Module |
| Origin | Sweden |
| HS CODE |
85389099 |
| Dimension |
1.98*0.2*2.61 (CM) |
| Weight | 0.55 kg |
Description:
The module is used for stored-program binary and analog
control tasks on the drive, group and unit control levels. It can
be used for the following applications:
- Drive control of unidirectional drives
- Drive control of actuators
- Drive control of solenoid valves
- Binary function group control
(sequential and logic)
- 3-step control
- Signal conditioning
The module is intended for use in connection with the multipurpose processing station.
The module can be operated in three different modes:
- Binary control mode
(and analog basic functions)
with variable cycle time
- Analog control mode
(and binary control)
with fixed, selectable cycle time
- Signal conditioning mode
with fixed cycle time and disturbance bit output
The operating mode is selected by means of function block
TXT1, which is the first to appear in the structure.
In the binary control mode, up to 4 binary function group
controls or 4 drive controls, or combinations of drive and
binary function group controls can be implemented for each
module (noting the module cycle time).
In the analog control mode, a maximum of 4 analog control
loops in the form of 3-step controllers - depending on the
regulating time of the actuator - can be implemented for each
module (see ”Operating modes”).
The module incorporates 4 hardware interfaces to the switchgear and the process.
sheet Link:
