Manufacture |
ABB |
|
Model |

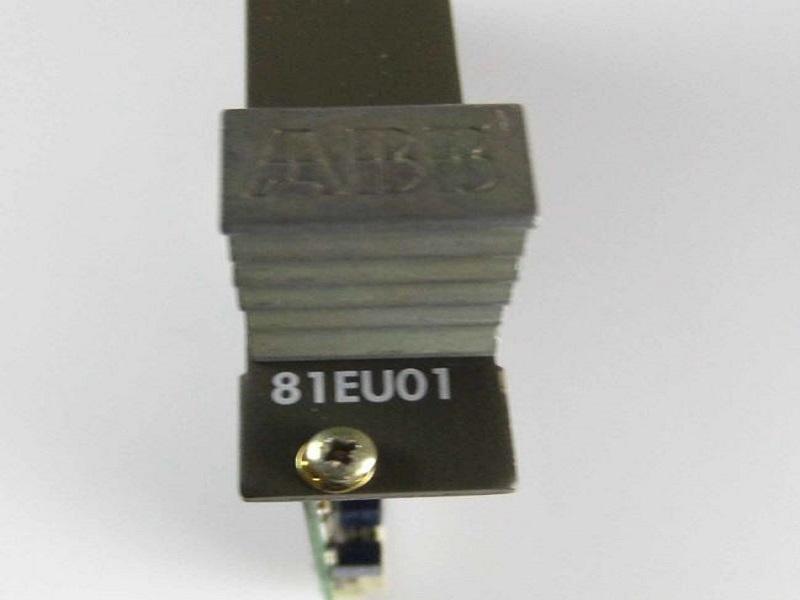

81EU01F-E |
| PN No. |
GJR2391500R1210 |
|
Catalog |
Advant OCS with Master SW |
|
Description |
Universial Input Module |
| Origin | Sweden |
| HS CODE |
85423190 |
| Dimension |
1.98*0.2*2.61 (CM) |
| Weight | 0.5 kg |
Description：
Application
The universal input module connects the following transmit-ters:
Binary Transmitters:
Single and changeover contacts with or without line moni-tor
Inductive initiators acc. to NAMUR DIN 19234Electronic transmitters
Analog transmitters for current signals:
Twin-wire transducers 4 ... 20 mA supplied from the inputmodule
4-wire transducers 0 ... 20 mA, 4 ... 20 mA and 0 ... 5 mAwith external power source
Temperature transducers:
Thermocouples with transducers for current signals of 4 ... 20mA and cold junctions inside the transducer. Linearization is on the input module.
Resistance thermometers with transducers for currentsignals of 4 ... 20 mA
The module consists of 16 function units. Each function unit may be used for any type of input mode. Any combination is possible.Parameter allocation and setting is programmed easily via the configuration list. The programmed values are stored in an EEPROM to ensure that they are not lost in the event of power failure. They can be changed any time.
Up to four limit values can be allocated to each analog signal.
Up to four independent correction and filter calculations can be performed independently on each input module. Programming is done by function block structuring. Observe the boundary conditions for this application
sheet Link:
81EU01F-E ABB GJR2391500R1210 Universial Input Module PDF Datasheet
