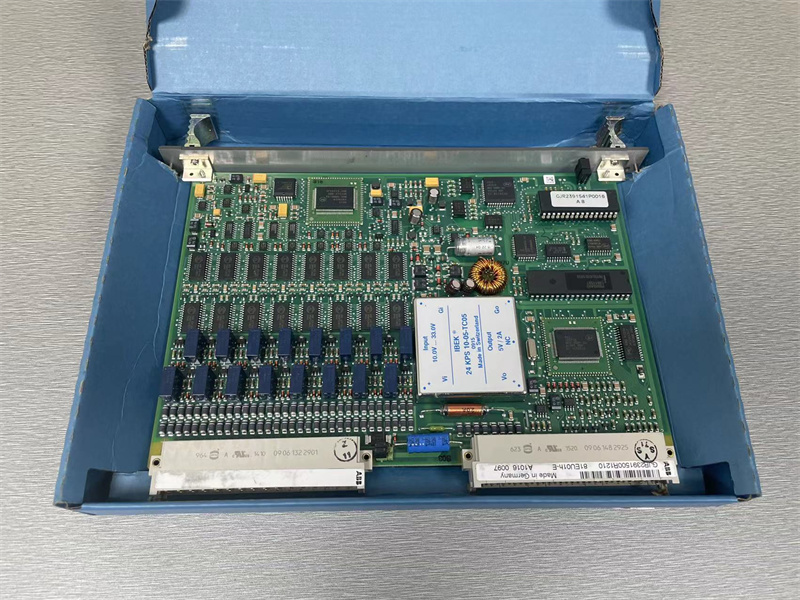

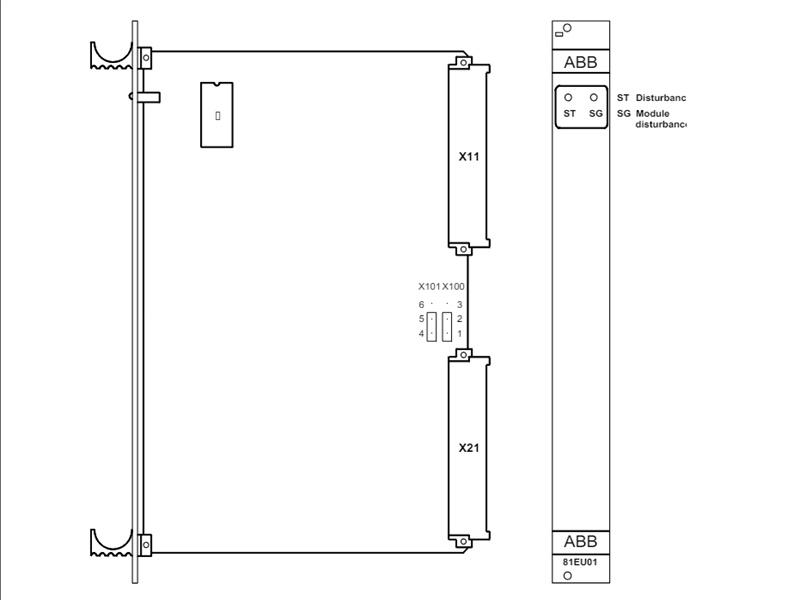

81EU01 ABB GJR2391500R1210 Universal Input Module

Description:

The universal input module connects the following transmit-ters
Binary Transmitters
Single and changeover contacts with or without line moni-tor
Inductive initiators acc. to NAMUR DIN 19234Electronic transmitters
Analog transmitters for current signals
-Twin-wire transducers 4 . 20 mA supplied from the inputmodule
4-wire transducers 0 ... 20 mA, 4 ... 20 mA and 0 ... 5 mAwith external power source
Temperature transducers
Thermocouples with transducers for current signals of 4 ... 20mA and cold junctions inside the transducer. Linearizationis on the input module.
Resistance thermometers with transducers for currentsignals of 4 ... 20 mA
The module consists of 16 function units. Each function unitmay be used for any type of input mode. Any combination ispossible.Parameter allocation and setting is programmedeasily via the configuration list. The programmed values arestored in an EEPROM to ensure that they are not lost in theevent of power failure. They can be changed any time.
Up to four limit values can be allocated to each analog signalUp to four independent correction and filter calculations canbe performed independently on each input module.Pro-gramming is done by function block structuring.Observe theboundary conditions for this application
