Manufacture |
ABB |
|
Model |

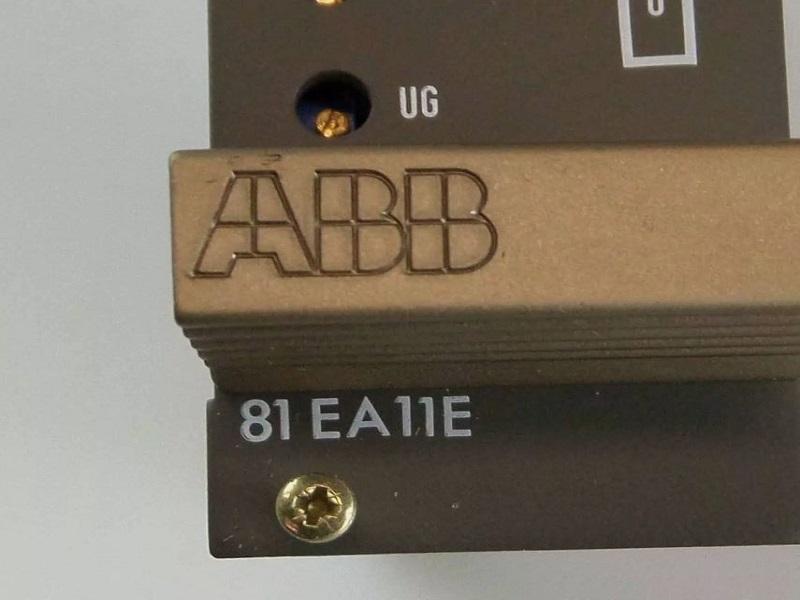

81EA11E |
| PN No. |
GJR2374800R0210 |
|
Catalog |
PROCONTROL 13 |
|
Description |
Analog Input Module |
| Origin | Sweden |
| HS CODE |
85389099 |
| Dimension |
1.98*0.2*2.61 (CM) |
| Weight | 0.84 kg |

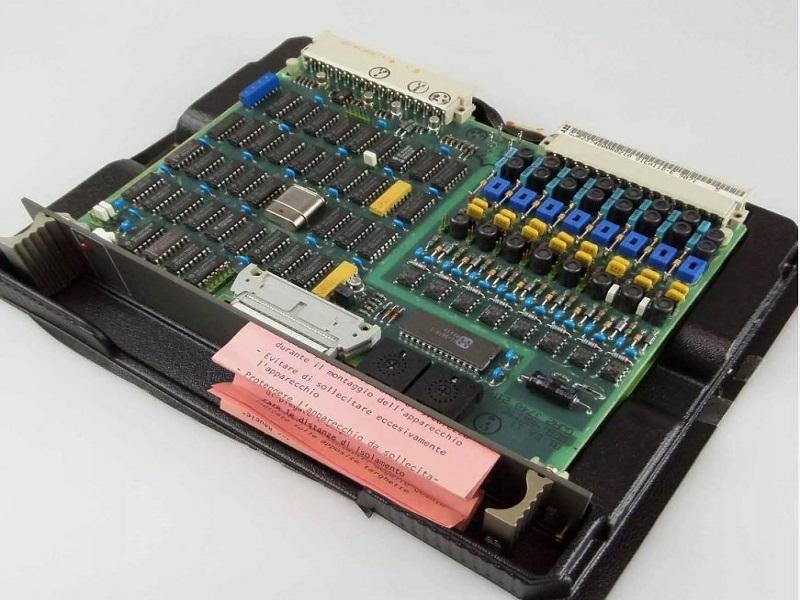

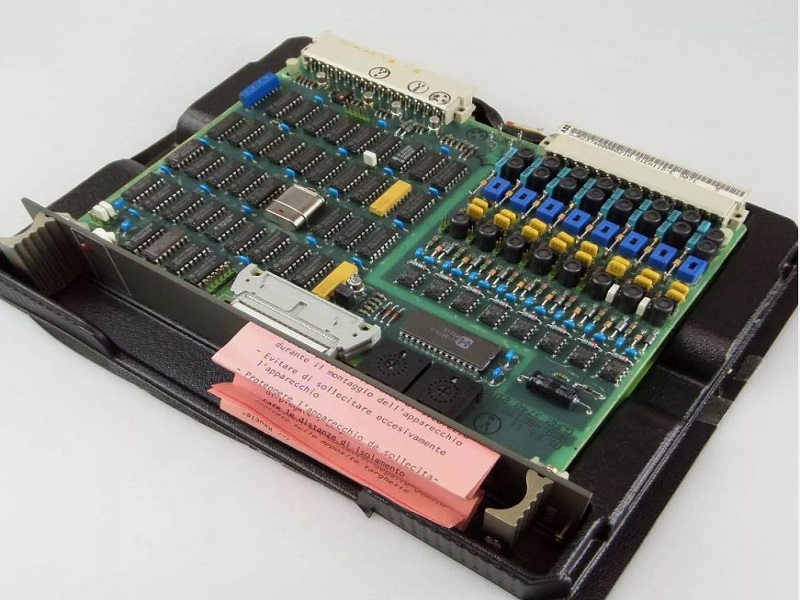

Module 81EA11 consists of two printed circuit boards which are equipped with four connectors X1, X2, X3 and X4, two address switches S1 and S2, one configuration switch S4, 16 change-over switches S501...S516, as well as the potentio meters for the lower and upper measuring range limits.
Printed circuit board (1) is fitted with connectors X1and X3. The operating voltage is supplied through connector X.
Connector X3 contains the connections for the 8 process inputs Ell to E82 as well as the analog value outputs A11 to A82.
Printed circuit board (2) is equipped with connectors X2 and X4. Connector X2 contains the standard interface SEA, connector X4 contains 8 process inputs E91 to E162 as well as the analog value outputs A91 to A62.
Terminals S for the screen can be connected via a jumper with b32 of connector Xl or connector X2.
