Manufacture |
ABB |
Model |

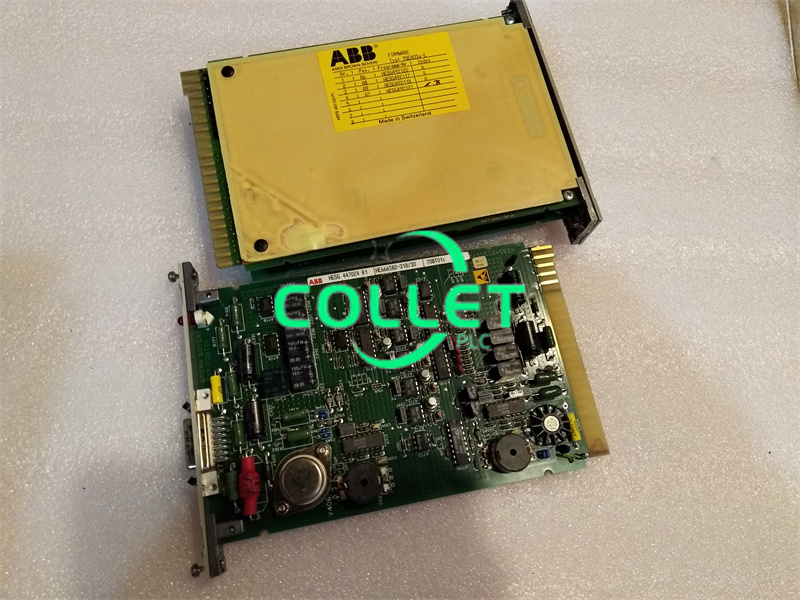

70SG01R1 |
PN No. |
70SG01R1 |
Catalog |
Advant OCS with Master SW |
Description |
Softstarter |
Origin | Sweden |
HS CODE | 85389099 |
Dimension |
1.98*0.2*2.61 (CM) |
Weight | 0.5 kg |
Description:
This module is used for converting and multiplying analog signals.ApplicationThe ABB 70SG01R1 is a soft starter, an electronic device that interfaces between the main power source and a motor to enhance the motor's operational lifespan by safeguarding it from electrical stresses. This soft starter is equipped with numerous built-in motor protection functions.
Primary features include:
- eBoost technology, offering high efficiency of up to 99%.
- Overall efficiency reaching up to 94.6%.
- PurePulse IGBT rectifier, providing a clean input with a Total Harmonic Distortion (THDi) of less than 2%.
- Output power factor of 1.0 for 10-40 kVA and 0.9 for 60-600 kVA.
- A true front access design for easy maintenance and operation.
- Compact form factor.
- Inverter zig-zag isolation transformer for added electrical protection.
The soft starter is user-friendly and straightforward to set up and operate. It contributes to extending motor life by mitigating electrical stress during start-up. The starting currents can be finely adjusted to match the load, application, and motor size optimally. More than ten distinct motor protection functions are incorporated to shield the motor against various types of load and network irregularities.
The ABB 70SG01R1 is particularly suited for general laboratory and industrial applications where precise data acquisition from two-wire transmitters is necessary. It presents a dependable and efficient solution to fulfill data acquisition requirements.
A green light-emitting diode on the front panel indicates when the module is ready for operation.
sheet Link:
70SG01R1 ABB Softstarter PDF Datasheet
