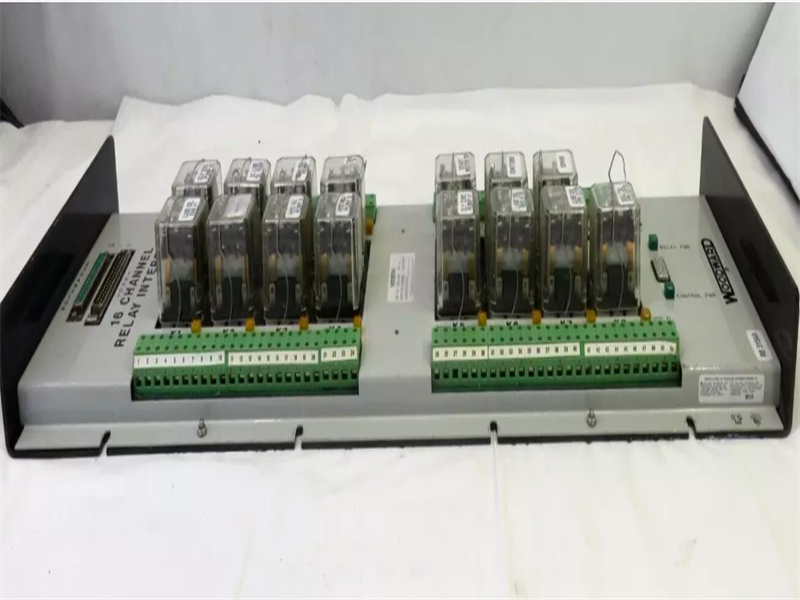

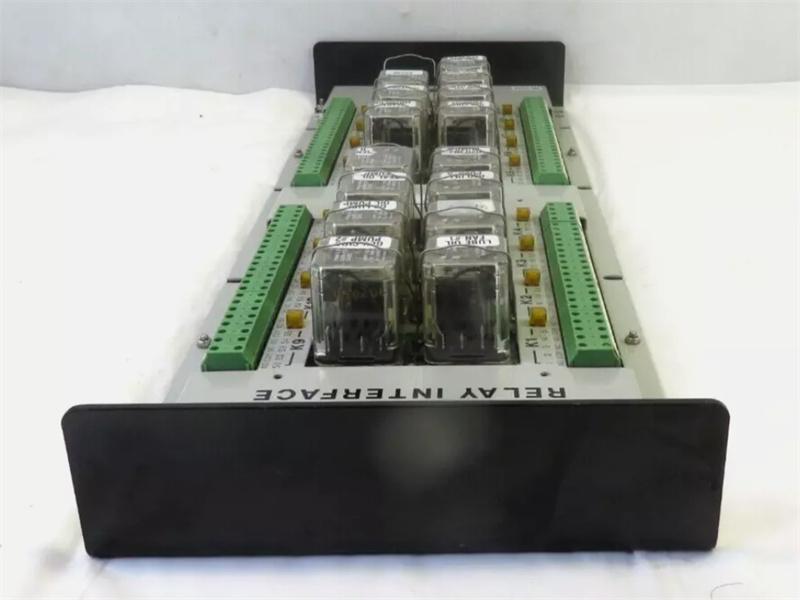

5441-419 Woodward 10 Amp ISO Relay Interface Module

Description:

Functional Overview
The Woodward 5441-419, a 10 Amp ISO Relay Interface Module, serves as an intermediary linking intricate control systems to vital components, ensuring flawless communication and efficient system operation. Rigorously tested and adhering to stringent standards, this module guarantees exceptional performance even under the most demanding conditions, significantly bolstering the reliability and functionality of integrated systems.

Key Features:
- Bridging Control and Components: Acts as a conduit connecting complex control systems with essential components, facilitating seamless information and control signal flow for precise, timely responses crucial for smooth process operations.

- Reliability through Rigorous Testing: The module's dependability stems from meticulous testing and quality assurance protocols, verifying its performance across diverse scenarios, including challenging environments. This comprehensive evaluation ensures consistent and reliable operation in adverse conditions or demanding operational contexts.

- Adherence to Standards: Strict conformity to established industry standards ensures compatibility with other components and systems while operating within prescribed parameters, further enhancing reliability.

- Enhanced System Reliability: By maintaining effective communication and coordination between control systems and components, the module significantly boosts the overall reliability of the systems it integrates into, contributing efficiency and dependability to various applications.

- Versatile Channel Configuration: With 16 channels, the module offers flexible connectivity options, enabling connection to multiple devices or components, broadening its utility across a wide range of scenarios.

- Visual Feedback with LED Indication: LED indicators provide instant visual feedback on individual channel statuses, simplifying monitoring, troubleshooting, and maintenance for efficient operations.

- Multi-Port Input for Enhanced Flexibility: Equipped with a dual-port input, the component introduces additional flexibility, allowing expanded connectivity and potential interfacing with various input sources.

Relay Interface De-Rating Process:
To ensure safe and efficient relay operation, determining an appropriate operating point involves several systematic steps:

1. Determine Maximum Simultaneously Energized Relays: Identify the maximum number of relays that will be energized simultaneously for more than a few minutes. This value is a fundamental parameter for establishing your operating point.

2. Locate Diagonal Bold Lines on the De-Rating Chart: Refer to the provided de-rating chart to find the diagonal bold lines corresponding to the number of "ON" relays. Identify lines both above and below your determined number of relays to form the basis for your operating point determination.

3. Horizontal Interpolation and Sketching: Horizontally interpolate between the identified diagonal lines to estimate temperature values between them. Sketch a line representing your interpolated value, or round up your relay count to match an available line for simplicity.

4. Determine Coil Voltage and Average Contact Current: Assess the supply voltage to the relay coils and calculate an average contact current, essential for defining your operating conditions accurately.

5. Find Corresponding Curves: On the de-rating chart, locate curves matching your determined coil voltage. These curves represent different combinations of coil voltage and contact current, aiding in visualizing operating limits for your application.

6. Estimate Average Contact Current Curve: Estimate a curve corresponding to your calculated average contact current, ensuring it aligns with your application's parameters and the specific coil voltage used.

7. Identify Intersection Point: Identify the intersection point between your estimated average contact current curve and the diagonal line representing the number of energized relays. This intersection point is crucial for determining your operating point.

8. Check for Safe Temperature: Ensure the intersection point's temperature value is below the critical limit of 55°C, guaranteeing safe temperature operation and preventing overheating or potential malfunctions in your relay application.

Datasheet Link:

5441-419 Woodward 10 Amp ISO Relay Interface Module PDF Datasheet
