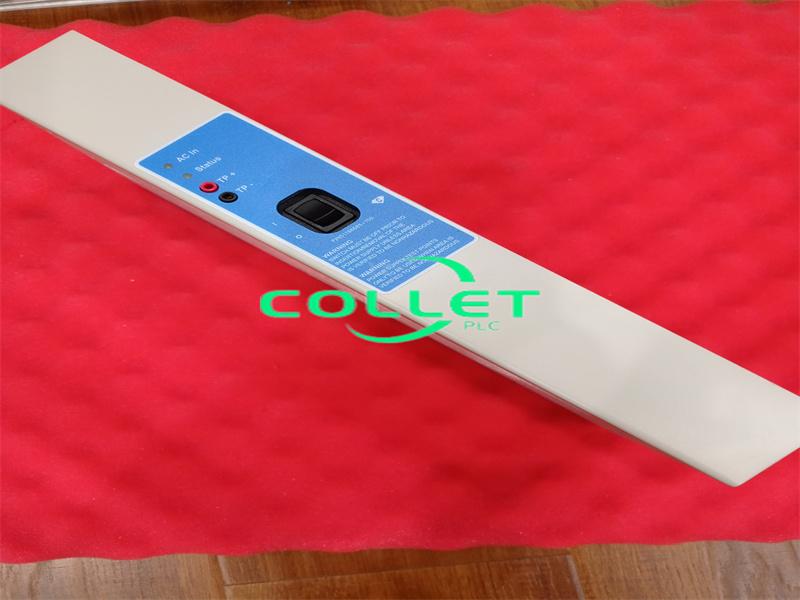

51198651-100 Honeywell HPM Power Supply

Reliance Automax Rockwell Automate DCS 5000 Data Highway Plus Interface Module.

Item NO.:
51198651-100
Payment:
T/T
Market Price:
$1000
Product Origin:
U.S.A.
Color:
Depends on material
Shipping Port:
Xiamen
Lead Time:
5-7 days
Goods Stock:
199
Product weight:
1.2 kg

Inquiry now

product introduction

Manufacture	Reliance Electric
Model	SPS5785
PN No.	51198651-100
Catalog	TDS
Description	HPM Power Supply
Origin	U.S.A.
HS CODE	85389091
Dimension	392215 (CM)
Weight	5.2 kg

Description:

his is the replacement power supply to p/n 51198947-100 .

The power supply is an AC input, AC/DC output power supply intended for use in Honeywell UCN (PM, APM or HPM) equipment cabinets.

The supply operates from line voltage 100 to 240 VAC, or (48 Vdc) batteries, and is CE-compliant.

The DC output is nominally rated at the output from the AC Line, and 24-26Vdc when powered from 48V battery. The design also includes a charging circuit for the 48V battery. There is also a nominal 6 Vac, line-frequency output rated at 35 milliamps load, to provide line frequency synchronization.

The full load operating temperature range is -20 to +55 deg C. Derating of the output load capability applies linearly above 55¦C at 0.5 amp/deg C to a maximum temperature of +65 deg C.

Two or more power supplies may be used with their outputs paralleled.

The supply is in compliance with all the applicable directives of the European Economic Community (EEC).
