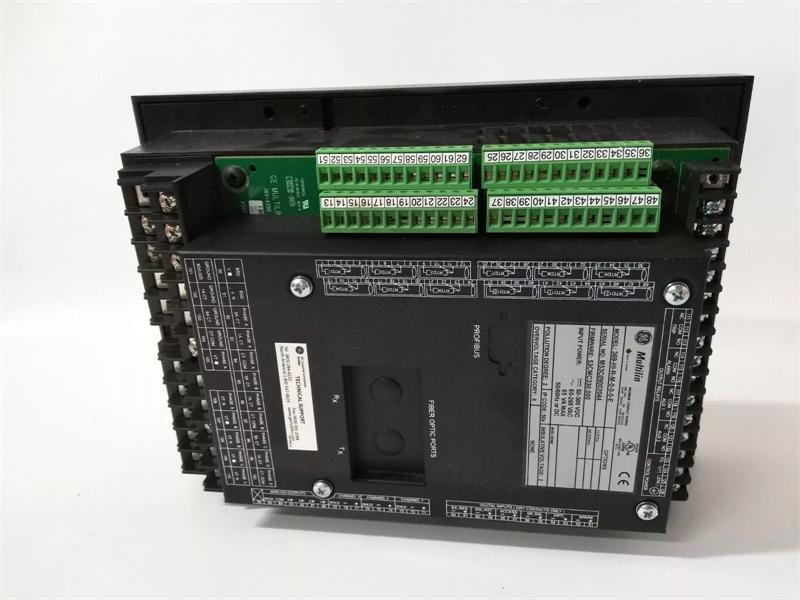

369-HI-R-M-0-0-0-0 GE Multilin 369, Motor Management Relay

Description:

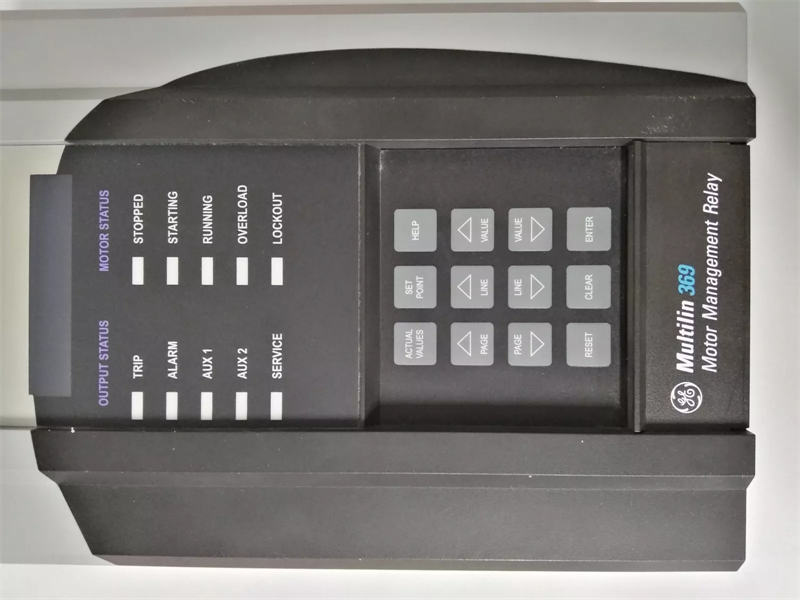

The 369-HI-R-M-0-0-H-0 from General Electric Multilin's 369 series is a Motor Management Relay designed to safeguard and regulate medium-sized motors along with their associated components. This device features ten LED indicators on its front panel, complemented by a 40-character liquid crystal display and keypad. These LEDs display various statuses such as service, trip, alarm, auxiliary 1 and 2, BSD, RRTD, metering, COM1, and COM2, offering users a quick reference for system health and ongoing processes within the relay and motor system.

As a high-control power unit, the 369-HI-R-M-0-0-H-0 accepts input voltages ranging from 110 to 250 V direct current and 100 to 240 V alternating current at frequencies of 50/60 Hz. This is in contrast to the low-power version of the series, which operates within a control power range of 20 to 60 V direct current and 20 to 48 V alternating current. Prospective buyers should ensure they select the appropriate model based on their control power requirements to avoid potential system damage from exceeding these ranges.

Additionally, the 369-HI-R-M-0-0-H-0 offers an optional conformal coating for enhanced protection against corrosion, humidity, temperature variations, and dust. This thin, breathable polymeric layer can be applied through various methods. For those interested in models lacking this feature but requiring additional protection, AX Control can add conformal coating to any suitable model upon request.

Frequently Asked Questions:
1.What are the specifications for the harsh environment option available for the GE Multilin 369-Hi-R-M-0-0-H-0 three-phase motor management and protection digital relay?
As an additional feature characterizing some 369 Multilin relays, the harsh environment option can be incorporated into relays similar to the GE Multilin 369-Hi-R-M-0-0-H-0. This option provides enhanced protection for operation in harsh or chemical environments.

2.What are the control power requirements for the 369-Hi-R-M-0-0-H-0 three-phase motor management relay?
The 369-Hi-R-M-0-0-H-0 GE motor management relay has a high control power range. It accepts direct current (VDC) from 50 to 300 volts and alternating current (VAC) from 60 to 265 volts.

3.Can you provide information on the security access features of the front panel for the 369-Hi-R-M-0-0-H-0 GE motor management relay?
The 369-Hi-R-M-0-0-H-0 GE digital relay offers two settings for access security: "Read Only" and "Read and Write". The "Read Only" setting restricts users from modifying actual values; they can only view these values and set points. In contrast, the "Read and Write" setting allows users to change and store set points.

Datasheet Link:

369-HI-R-M-0-0-0-0 GE EnerVista 369, Motor Management Relay PDF Datasheet
