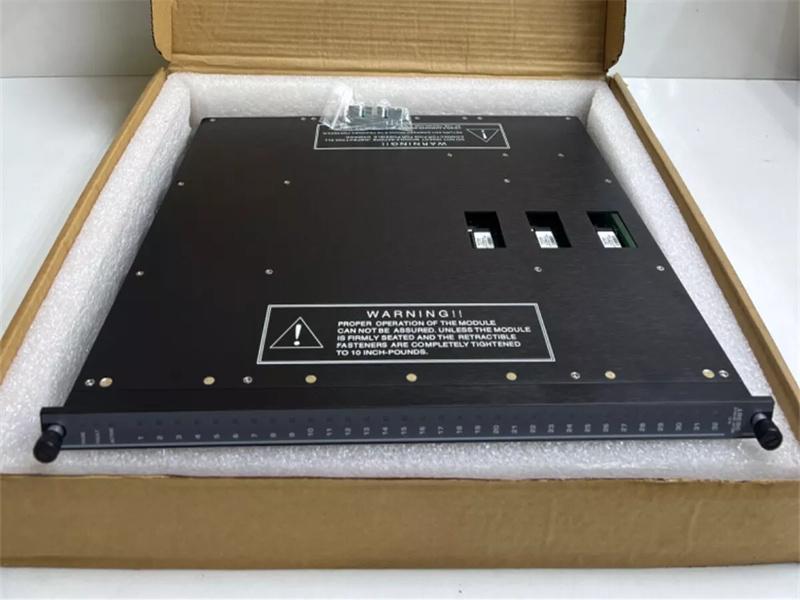

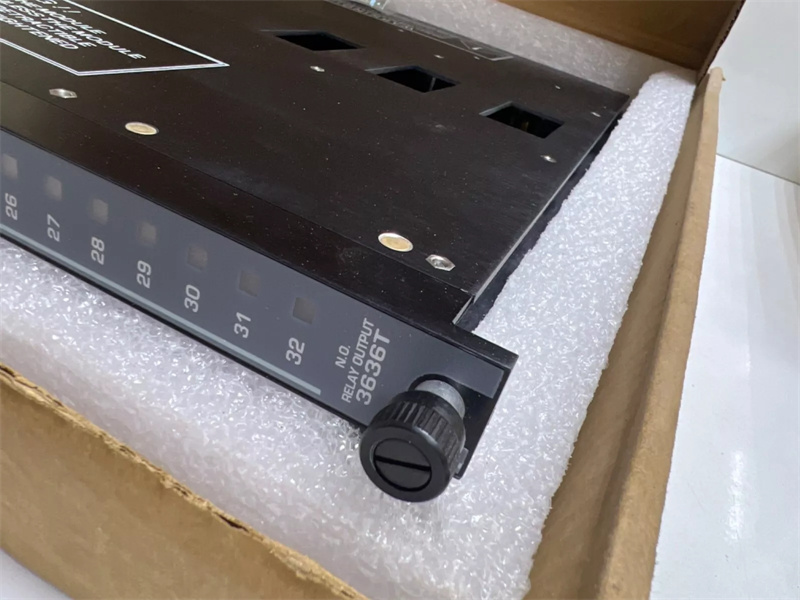

3636T TRICONEX Digital Relay Output Module

Description:

Relay Output Module
The model 3636R/T Relay Output (RO) Module is a non-triplicated module for use on non-critical points which are not compatible with “high-side” solid-state output switches. An example is interfacing with annunciator panels. The
relay output module receives output signals from the main processors on each of three channels. The three sets of
signals are then voted, and the voted data is used to drive the 32 individual relays.
Each output has a loopback circuit which verifies the operation of each relay switch independently of the presence
of a load, while ongoing diagnostics test the operational status of the module. Failure of any diagnostic activates
the Fault indicator, which in turn activates the chassis alarm.
The relay output module comes with normally open (NO) contacts. It supports hot-spare modules and requires a separate external termination panel (ETP) with a cable interface to the Tricon backplane.

Type： Non-triplicated
Points： 32, non-commoned
Voltage Range： 155 VAC/VDC, maximum
Current Load： 2A, maximum
Switching Power：2000 V A, 150 watts
Resistive：maximum
Point Isolation： 1500 VDC； 2500 VDC1
Fuses： 1 per output (2.5A fast-acting)
Diagnostic Indicators
Output Status：1 per point
Module Status：PASS, FAULT, ACTIVE
Output Contact： Normally Open

Frequently Asked Questions:
1.What voltage range does 3636T support?
155 VAC/VDC, maximum

2.What about the diagnostic index of 3636T?
Output Status:1 per point
Module Status: PASS, FAULT, ACTIVE

Datasheet Link:

3636T  TRICONEX Digital Relay Output Module Datasheet
