3636R TRICONEX Relay Output Module

Description:

Relay Output Module

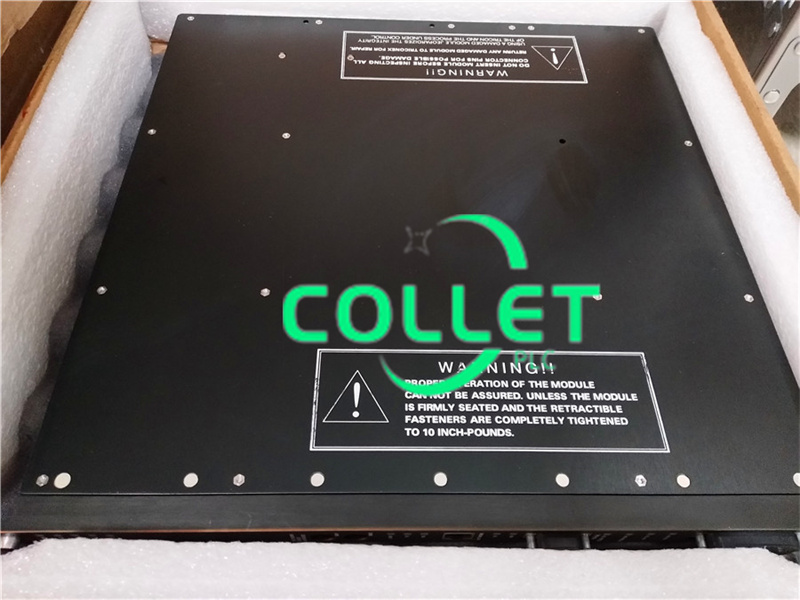

The model 3636R/T Relay Output (RO) Module is a non-triplicated module for use on non-critical points which are not compatible with “high-side” solid-state output switches. An example is interfacing with annunciator panels. The relay output module receives output signals from the main processors on each of three channels. The three sets of signals are then voted, and the voted data is used to drive the 32 individual relays.
Each output has a loopback circuit which verifies the operation of each relay switch independently of the presence
of a load, while ongoing diagnostics test the operational status of the module. Failure of any diagnostic activates the Fault indicator, which in turn activates the chassis alarm.
The relay output module comes with normally open (NO) contacts. It supports hot-spare modules and requires a separate external termination panel (ETP) with a cable interface to the Tricon backplane.

Frequently Asked Questions:
1.What voltage range does 3636R support?
155 VAC/VDC, maximum

2.How many points do 3636R have?
32, non-commoned

Datasheet Link:

3636R TRICONEX Relay Output Module Datasheet
