3500/50M Bently Nevada 288062-02 Tachometer Module-Colletplc

Description:

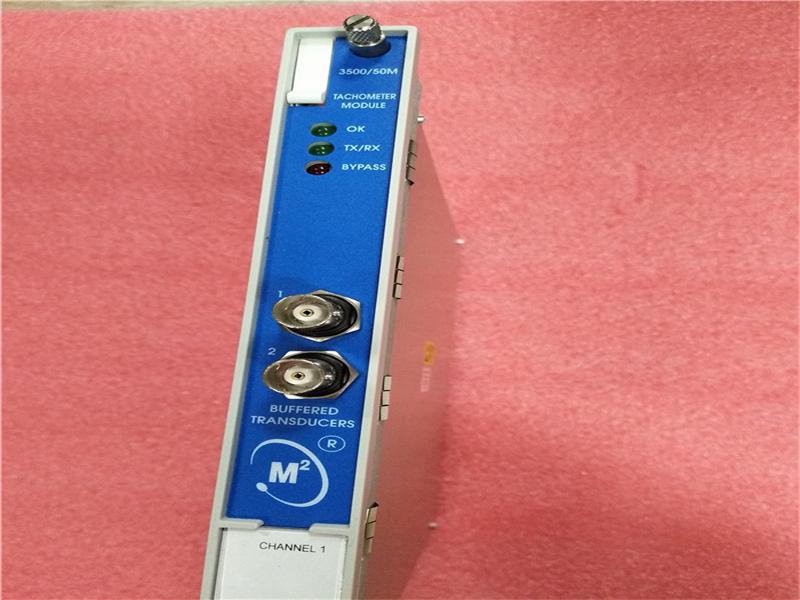

The 3500/50M Tachometer Module is a 2-channel module that accepts input from proximity probes or magnetic pickups to determine shaft
rotative speed, rotor acceleration, or rotor direction. The module compares these measurements against user-programmable alarm
setpoints and generates alarms when the setpoints are violated. The Tachometer Module is programmed using the 3500 Rack Configuration software. The following configuration options areavailable:
l Speed Monitoring, Setpoint Alarming and Speed Band Alarming
l Speed Monitoring, Setpoint Alarming and Zero Speed Notification
l Speed Monitoring, Setpoint Alarming and Rotor Acceleration Alarming
l Speed Monitoring, Setpoint Alarming and Reverse Rotation Notification

The 3500/50M Tachometer Module can be configured to supply conditioned Keyphasor signals to the backplane of the 3500 rack for use
by other monitors. Therefore, you don't need a separate Keyphasor module in the rack.
The 3500/50M Tachometer Module has a peak hold feature that stores the highest speed, the highest reverse speed, or the number of reverse
rotations that the machine has reached. You can reset the peak values.

Datasheet Link:
