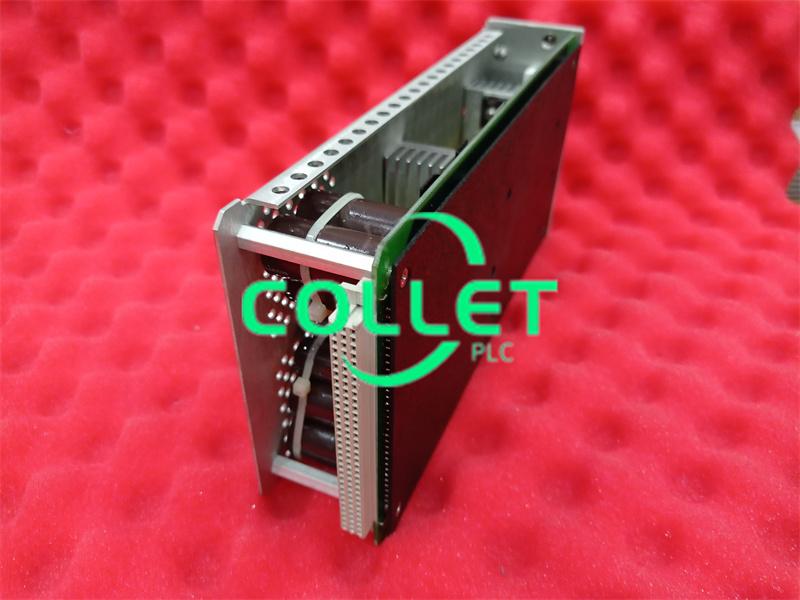

3500/50 133442-01 BENTLY NEVADA Tachometer Module

Description:

Manufacture  BENTLY NEVADA
Model   3500/50
Ordering information   133442-01
Catalog 3500 SERIES
Description   Tachometer Module
HS Code 85389091
Dimension 16cm*16cm*12cm
Weight 0.8kg

NEW AND ORIGIN ITEM IN STOCK

WITH ONE YEAR WARRANTY

Hope anyone enquire from us,pls click this sales6@nseauto.com
1. lower your support costs
2, Provide on-going availability of automation replacement parts
Quantity available: 1
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets

Description
The 3500/50M Tachometer Module is a 2-channel module that
accepts input from proximity probes or magnetic pickups to
determine shaft rotative speed, rotor acceleration, or rotor
direction. The module compares these measurements against
user-programmable alarm setpoints and generates alarms
when the setpoints are violated.
The 3500/50M Tachometer Module is programmed using the
3500 Rack Configuration software. The following configuration
options are available:
l Speed Monitoring, Setpoint Alarming and Speed Band Alarming
l Speed Monitoring, Setpoint Alarming and Zero Speed Notification
l Speed Monitoring, Setpoint Alarming and Rotor Acceleration Alarming
l Speed Monitoring, Setpoint Alarming and Reverse Rotation
Notification
The 3500/50M Tachometer Module can be configured to supply
conditioned Keyphasor* signals to the backplane of the 3500
rack for use by other monitors. Therefore, you don't need a
separate Keyphasor module in the rack.
The 3500/50M Tachometer Module has a peak hold feature that
stores the highest speed, the highest reverse speed, or the
number of reverse rotations that the machine has reached. You
can reset the peak values.

Ordering Considerations
To add the 3500/50M Tachometer Module to an
existing 3500 Monitoring System, you must have
the following versions of firmware and software:
Firmware and Software Version
3500/22M Module Firmware Revision (1.70)
3500/01 Configuration Software Version 4.20 or later
3500/02 Data Acquisition Software Version 2.52 or later
3500/03 Display Software Version 1.52 or later
3500/50M Firmware Revision 5.30 or later
3500/50M Not compatible with any
version of 3500/20
Consider the following guidelines and restrictions
before placing an order:
l External Termination Blocks cannot be used with
Internal Termination I/O modules.
l When ordering I/O Modules with External
Terminations, you must order External Termination
Blocks and cables separately.
l Use Bussed External Termination Blocks with TMR
I/O modules only.
l Before selecting the Internal Barrier option, see 3500
Internal Barriers product datasheet (document
141495)
