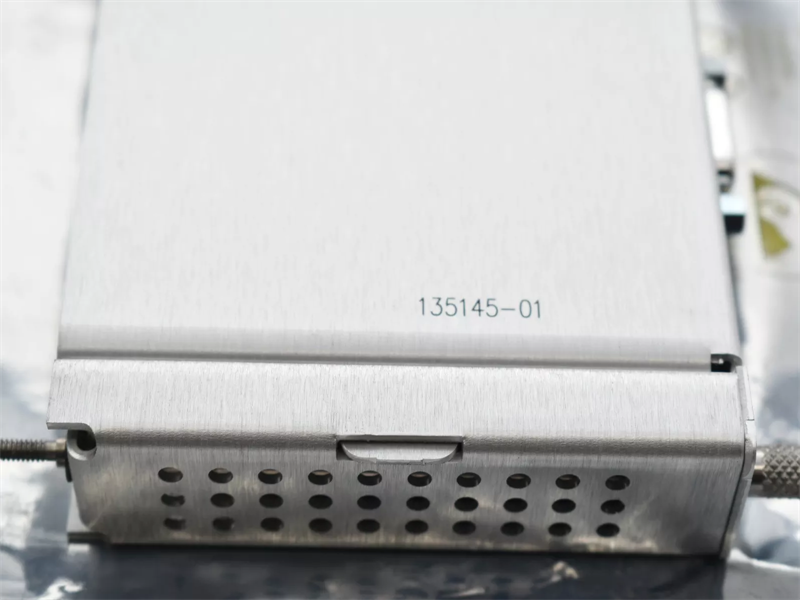

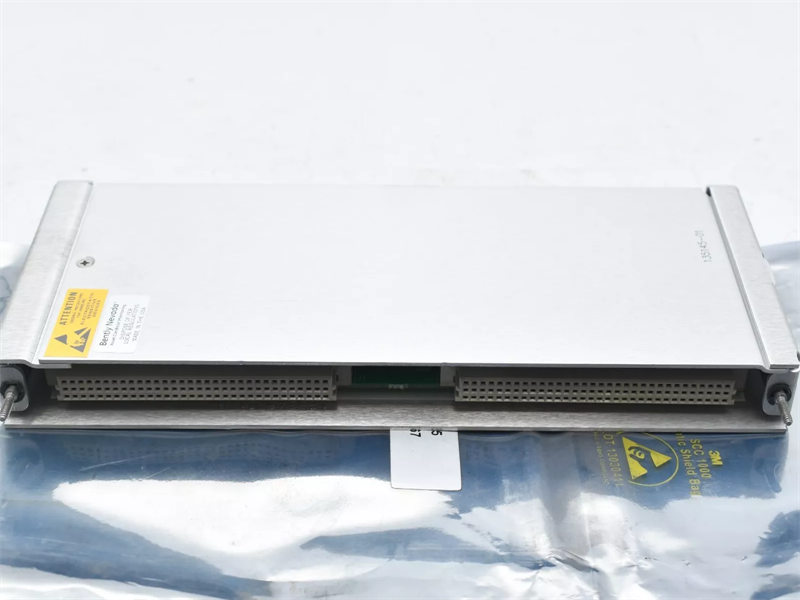

3500/45 135145-01 Bently Nevada, Position I/O Module

Description:

135145-01 Position I/O Module with External Terminations for use with Proximitors, RPTs or DC LVDTs, manufactured by Bently Nevada under 3500/45.

The 3500/45 Position Monitor is a 4-channel instrument that accepts input from proximity transducers, Rotary Position Transducers (RPTs), DC Linear Variable Differential Transformers (DC LVDTs), AC Linear Variable Differential Transformers (AC LVDTs), and rotary potentiometers. The monitor conditions the input and compares the conditioned signals with user-programmable alarms

You can program each channel using the 3500 Rack Configuration Software to perform the following functions:
Axial (thrust) Position
Differential Expansion
Standard Single Ramp Differential Expansion
Non-standard Single Ramp Differential Expansion
Dual Ramp Differential Expansion
Complementary Differential Expansion
Case Expansion
Valve Position
The primary purpose of the 3500/45 Position Monitor is to provide the following:
-Machinery protection by continuously comparing monitored parameters against configured alarm setpoints to drive alarms
-Essential machine information for operations and maintenance personnel

Each channel, depending on configuration, typically conditions its input signal to generate various parameters called measured variables. You can establish alert setpoints for each active measured variable and danger setpoints for any two of the active measured variables.

Frequently Asked Questions:

1.What are dates of Inputs for 135145-01?
Signal: Accepts from 1 to 4 signal inputs
Power consumption:
7.7 watts, typical, using Position I/O,
or
8.5 watts typical, using AC LVDT I/O
or
5.6 watts typical, using Rotary Potentiometer I/O
Input Impedance:
1 MΩ (DC LVDT inputs)10 kΩ (Proximitor or RPT inputs)137 kΩ (AC LVDT inputs)200 kΩ (Rotary Potentiometer inputs)

2.What is the payment term?
Wire transfer only.

3.When does the warranty period start?
One year from the time the client receives the goods.
