Manufacture |
Bently Nevada |
|
Model |
125712-01 |
| PN No. |
125712-01 |
|
Catalog |
3500/32 |
|
Description |
Spare 4-Channel Relay Module |
| Origin | U.S.A. |
| HS CODE |
85389091 |
| Dimension |
24*2.4*16 (CM) |
| Weight | 0.5 kg |
Description:

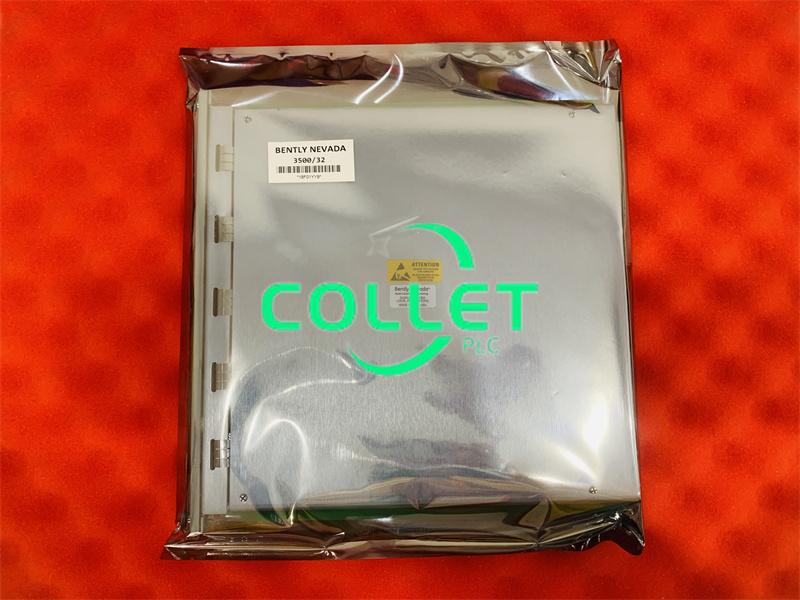

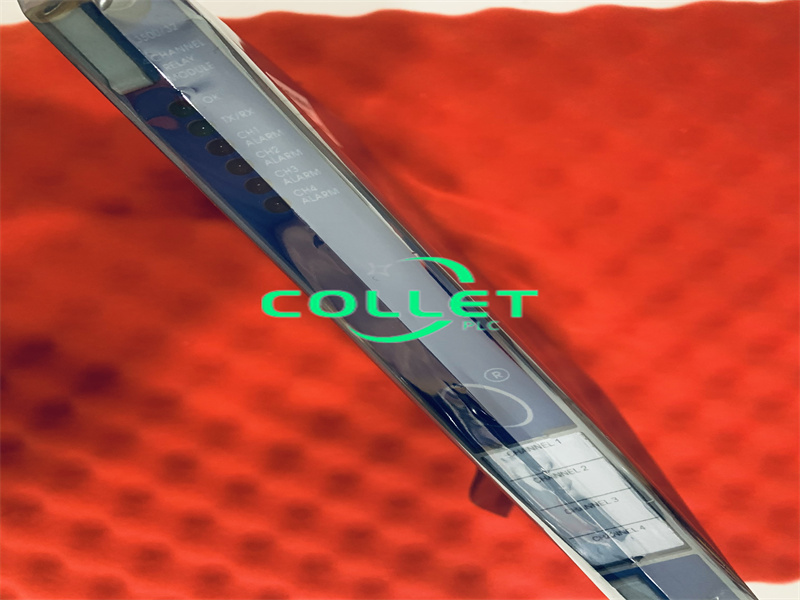

125712-01 is a Spare 4-Channel Relay Module, manufactured by Bently Nevada under 3500/32
Description
The 4-Channel Relay Module is a full-height module that provides four relay outputs. Any number of 4-Channel Relay Modules can be placed in any of the slots to the right of the Rack Interface Module. Each output of the 4-Channel Relay Module can be independently programmed to perform needed voting logic.
Each relay utilized on the 4-Channel Relay Module includes "Alarm Drive Logic". The Alarm Drive Logic is programmed using AND and OR logic, and can utilize alarming inputs (alerts and dangers) from any monitor channel or any combination of monitor channels in the rack. This Alarm Drive Logic programming uses the 3500 Rack Configuration Software to meet the specific needs of the application.
Note: Triple Modular Redundant (TMR) applications require the use of the 3500/34 TMR Relay Module. Consult Bently Nevada Specification and Ordering Information part number 141534-01 for details.
Frequently Asked Questions:
1.What is inputs power consumption of 125712-01?
6 watts typical
2.What is max switched power of 125712-01?
dc: 120 W
ac: 600 VA
3.When does the warranty period start?
One year from the time the client receives the goods.
Datasheet Link:
3500/32 125712-01 Bently Nevada, Spare 4-Channel Relay Module PDF Datasheet
