Manufacture |
Bently Nevada |
|
Model |
125840-02 |
| PN No. |
125840-02 |
|
Catalog |
3500/15 |
|
Description |
Low Voltage ac Power Input Module (PIM) |
| Origin | U.S.A. |
| HS CODE |
85389091 |
| Dimension |
24*2.4*16 (CM) |
| Weight | 0.5 kg |
Description:

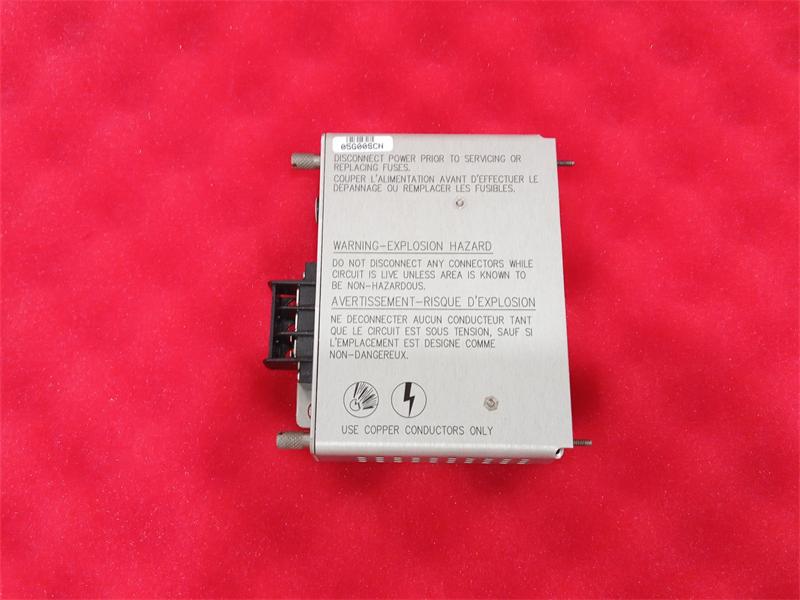

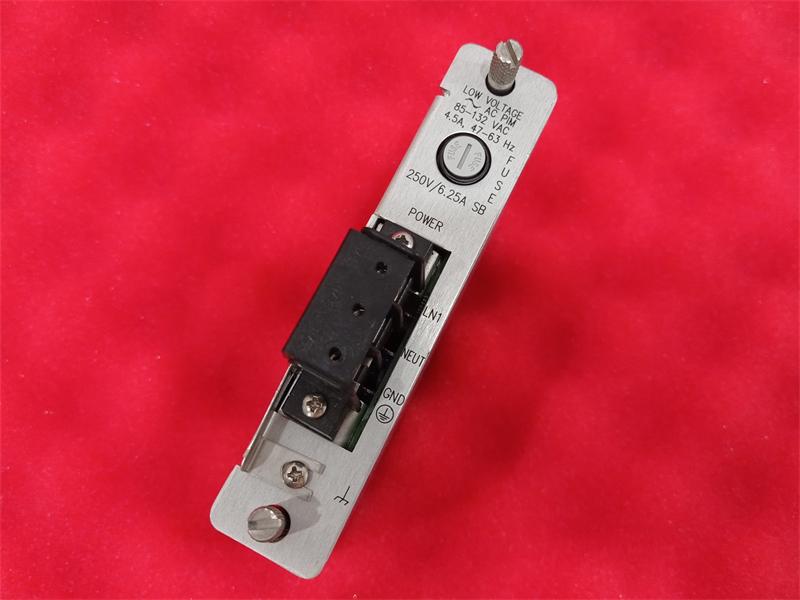

125840-02 is a Low Voltage ac Power Input Module (PIM), manufactured by Bently Nevada under 3500/32
Description
The 3500 Power Supplies are half-height modules and must be installed in the specially designed slots on the left side of the rack. The 3500 rack can contain one or two power supplies (any combination of ac and/or dc) and either supply can power a full rack. If installed, the second supply acts as a backup for the primary supply. When two power supplies are installed in a rack, the supply in the lower slot acts as the primary supply and the supply in the upper slot acts as the backup supply. Removing or inserting either power supply module will not disrupt operation of the rack as long as a second power supply is installed.
The 3500 Power Supplies accept a wide range of input voltages and converts them to voltages acceptable for use by other 3500 modules. Three Power Supply versions are available with the 3500 Series Machinery Protection System as follows:
•AC Power
•High Voltage DC Power Supply
•Low Voltage DC Power Supply
Frequently Asked Questions:
1.What is input voltage of 125840-02?
110 Vac nominal
85 to 132 Vac rms
120 to 188 Vac pk
2.When does the warranty period start?
One year from the time the client receives the goods.
Datasheet Link:
3500/15 125840-02 Bently Nevada, Low Voltage ac Power Input Module (PIM) PDF Datasheet
