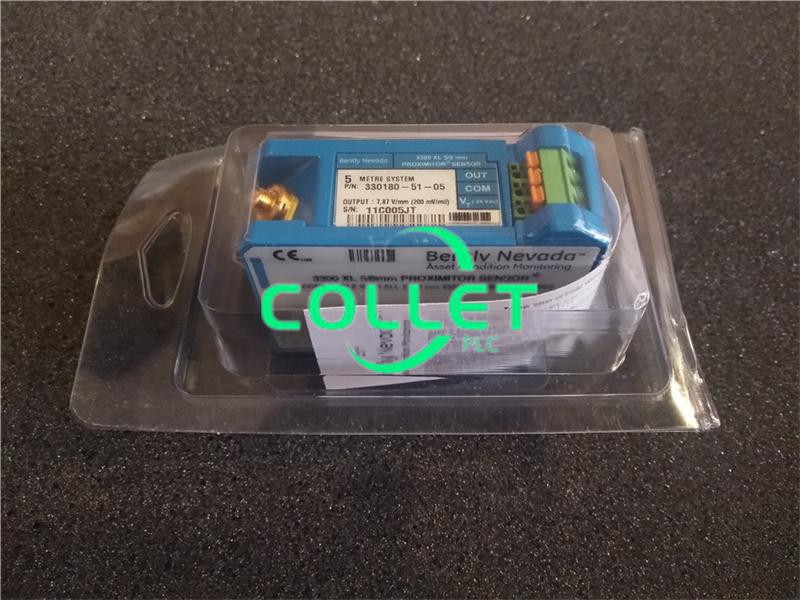

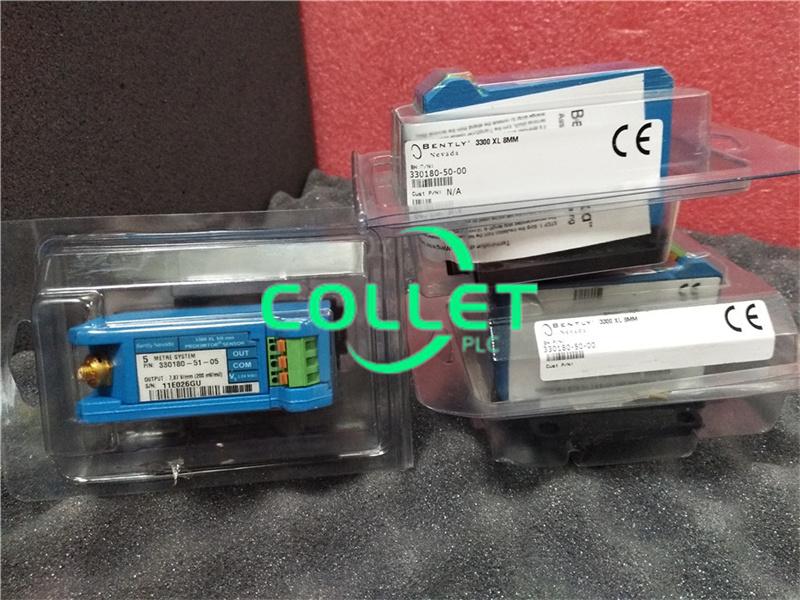

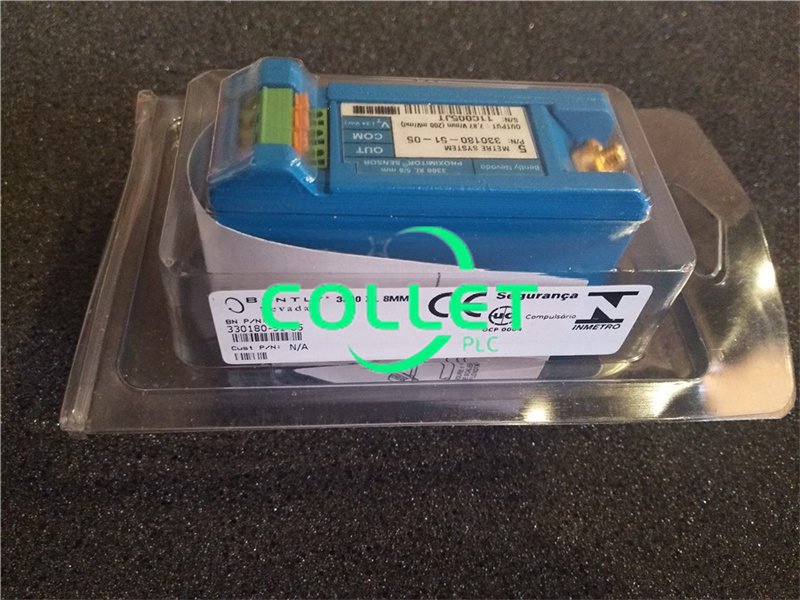

330180-51-05 Bently Nevada 3300 XL Proximitor Sensor

NEW AND ORIGIN ITEM IN STOCK

WITH ONE YEAR WARRANTY

Hope anyone enquire from us,pls click this sales6@nseauto.com
1. lower your support costs
2, Provide on-going availability of automation replacement parts
Quantity available: 1
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets

Description
The 3300 XL 8 mm Proximity Transducer System consists of:
o One 3300 XL 8 mm probe,
o One 3300 XL extension cable1, and
o One 3300 XL Proximitor Sensor2.
The system provides an output voltage that is directly
proportional to the distance between the probe tip and the
observed conductive surface and can measure both static
(position) and dynamic (vibration) values. The system’s primary
applications are vibration and position measurements on
fluid-film bearing machines, as well as Keyphasor reference
and speed measurements3.
The 3300 XL 8 mm system delivers the most advanced
performance in our eddy current proximity transducer
systems. The standard 3300 XL 8 mm 5-meter system also
fully complies with the American Petroleum Institute’s (API)
670 Standard (4th Edition) for mechanical configuration, linear
range, accuracy, and temperature stability. All 3300 XL 8 mm
proximity transducer systems provide this level of
performance and support complete interchangeability of
probes, extension cables, and Proximitor sensors, eliminating
the need to match or bench calibrate individual components.
Each 3300 XL 8 mm Transducer System component is
backward compatible and interchangeable4 with other non-XL
3300 series 5 mm and 8 mm transducer system components5.
This compatibility includes the 3300 5 mm probe, for
applications in which an 8 mm probe is too large for the
available mounting space6,7.
