Manufacture |
Bently Nevada |
|
Model |
330173-00-03-10-02-CN |
| PN No. |
330173-00-03-10-02-CN |
|
Catalog |
3300 5 MM |
|
Description |
Proximity Probes |
| Origin | U.S.A. |
| HS CODE |
85389091 |
| Dimension |
10 (CM) |
| Weight | 0.4 kg |
Description:

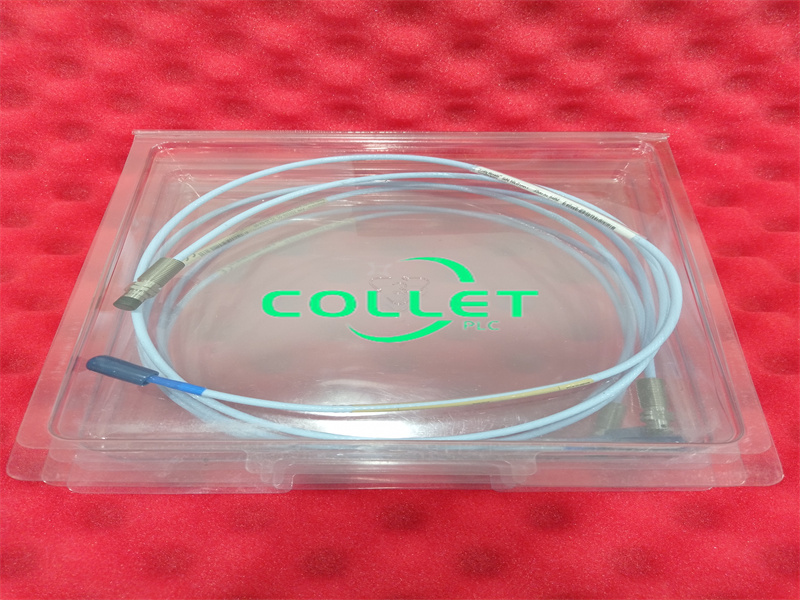

330173-00-03-10-02-CN Proximity Probes, manufactured by Bently Nevada, belongs to 3300 5 MM system.
The 3300 5 mm Proximity Transducer System consists of:
- a 3300 5 mm probe 1, 2
- a 3300 XL extension cable (ref 141194-01)
- a 3300 XL Proximitor Sensor 3, 4, 5 (ref 141194-01)
When combined with a 3300 XL Proximitor Sensor and XL extension cable, the system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface. The system can measure both static (position) and dynamic (vibration) data.
Its primary use is in vibration and position measurement applications on fluid-film bearing machines, as well as
Keyphasor measurement and speed measurement applications6.
The system provides an accurate, stable signal output over a wide temperature range. All 3300 XL Proximity Transducer Systems achieve this level of performance with complete interchangeability of probe, extension cable, and Proximitor sensor, eliminating the need for individual component matching or bench calibration. 330173-00-03-10-02-CN Proximity Probes connectors are Miniature coaxial ClickLoc
connector and the cable type are standard cable.
Datasheet Link:
330173-00-03-10-02-CN Bently Nevada 3300 5mm Proximity Probes PDF Datasheet
