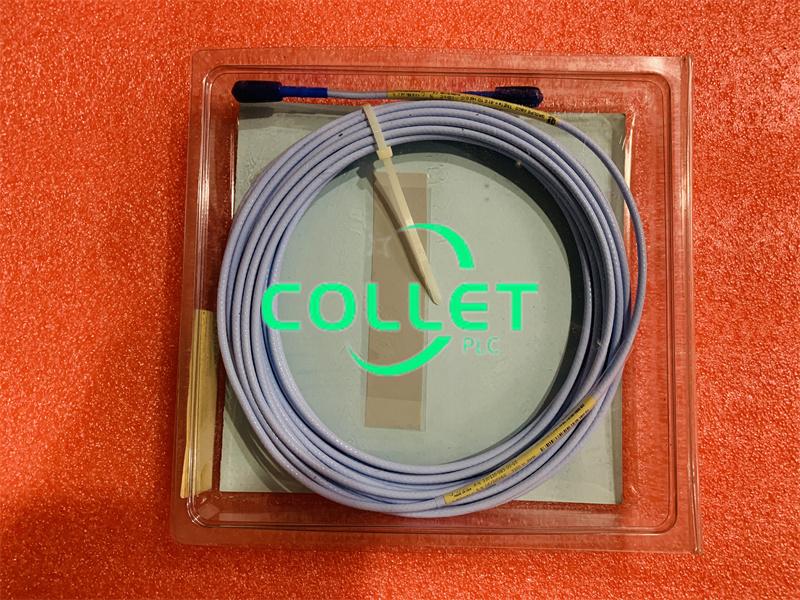

330130-040-00-CN Bently Nevada 3300 XL 8 mm Proximity Probes

Description:

3300 XL 8 mm Proximity Probes, manufactured by Bently Nevada, belongs to 3300 XL 8 mm system.

The 3300 XL 8 mm Proximity Transducer System consists of:
- One 3300 XL 8 mm probe,
- One 3300 XL extension cable1 and
- One 3300 XL Proximitor Sensor2.
The system provides an output voltage that is directly proportional to the distance between the probe tip and the
observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s
primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements3.
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer
systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of
probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm
probe, for applications in which an 8 mm probe is too large for the available mounting space6,7.

Datasheet Link:

330130-040-00-CN Bently Nevada 3300 XL 8 mm Proximity Probes PDF Datasheet
