Manufacture |
Vibration |
Model |

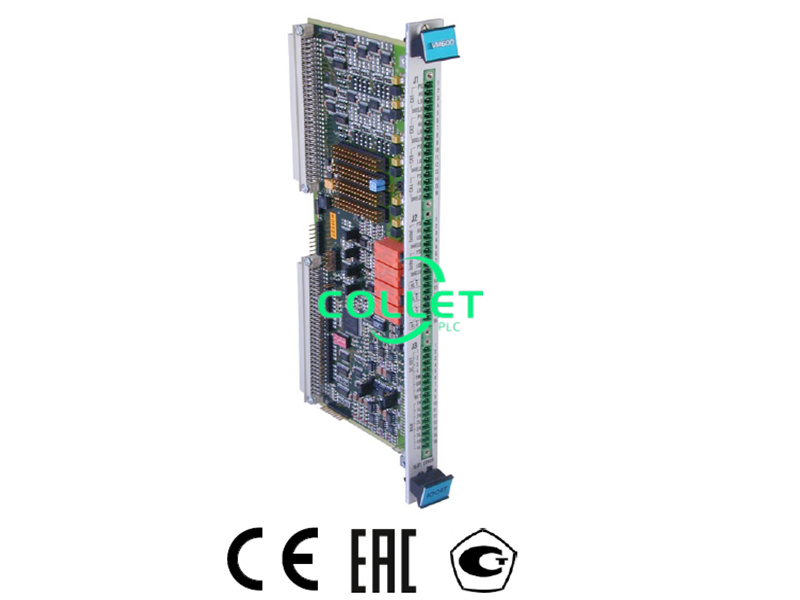

IOC4T |
PN No. |
200-560-000-114 |
Catalog |
NIL |
Description |
input/output card |
Origin |
Switzerland |
HS CODE |
85389091 |
Dimension |
25*15*8 (CM) |
Weight | 0.3 kg |
NEW AND ORIGIN ITEM IN STOCK
WITH ONE YEAR WARRANTY
Hope anyone enquire from us,pls click this sales6@nseauto.com
1. lower your support costs
2, Provide on-going availability of automation replacement parts
Quantity available: 1
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
DESCRIPTION
• From the Vibro-Meter® product line
• Signal interface card with 4 dynamic signal
inputs and 2 tachometer (speed) inputs, for the
MPC4 machinery protection card
• Screw-terminal connectors (48 terminals) for all
input/output connections
• Contains 4 relays which can be attributed to
alarm signals, under software control
• 32 fully-programmable open-collector outputs
(jumper selectable) to IRC4 and RLC16 relay
cards
• Buffered “raw” sensor signals and analog
output signals (voltage or current) for vibration
channels
• EMI protection for all inputs and outputs
• Live insertion and removal of cards
(hot-swappable)
• Available in “standard” and “separate circuits”
versions
