Manufacture
Vibration
Model
CMC16
PN No.
200-530-SSS-HHh
Catalog
Nil
Description

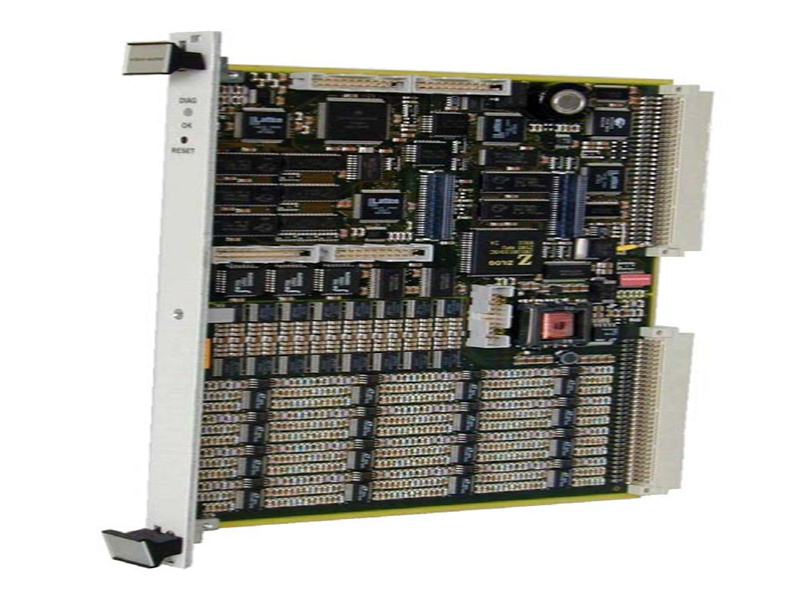

Condition Monitoring Card
Origin
Switzerland
HS CODE
85389091
Dimension
26*20*2 (CM)
Weight
0.4 kg
SPECIFICATIONS SPEED/PHASE REFERENCE INPUT Triggering method : Rising or falling edge Input voltage range : 1 to 24 V pulse (AC coupled in the -24 V / +24 V range) Frequency range : 0.25 to 10,000 Hz Maximum pulses per revolution : 128 for speed calculation (1 only for phase reference) Minimum rise time : 4 volts/second Minimum pulse duration : 10 µs Max. common mode voltage : 50 V Machine speed resolution : ±1 rev/min Maximum number allowed : 4, amongst the first four channels VIBRATION AND ANALOG INPUTS A/D converter : 1 converter per channel, 14 bits Values transmitted to PC are truncated to 12 bits + sign (resolution 1 in 4096) Maximum sampling rate : 100 kHz Accuracy • AC measurement : 1% of input FSD • DC measurement : 1% of input FSD Input range (switch selected) • AC measurement : 0.1, 0.2, 0.5, 1.0, 2.0, 4.0, 10.0, 20.0 V FSD • DC measurement : ±24 V FSD • DC thermocouple : 61.022 mV FSD Maximum frequency span : 20 kHz Minimum frequency : AC measurement with 0.16 Hz HP filter (at -3 dB) DC bandwidth : DC measurement with 0.20 Hz LP filter (at -3 dB) Anti-aliasing attenuation : 70 dB at f > 1.56 x fc Signal / noise : > 70 dB up to 10 kHz > 60 dB at 20 kHz Crosstalk isolation : < -75 dB Max. common mode voltage : 50 V for vibration/process inputs, 3 V for thermocouple inputs
NEW AND ORIGIN ITEM IN STOCK
WITH ONE YEAR WARRANTY
Hope anyone enquire from us,pls click this sales6@nseauto.com
1. lower your support costs
2, Provide on-going availability of automation replacement parts
Quantity available: 1
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
