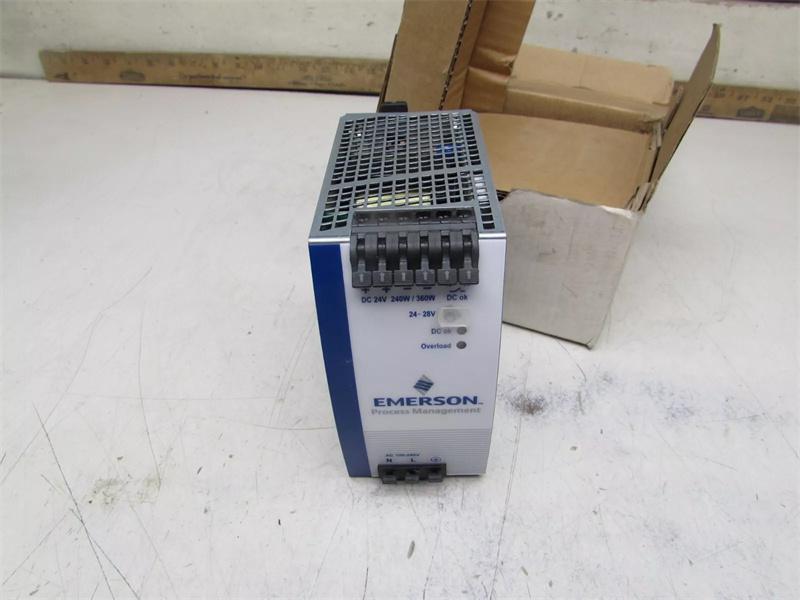

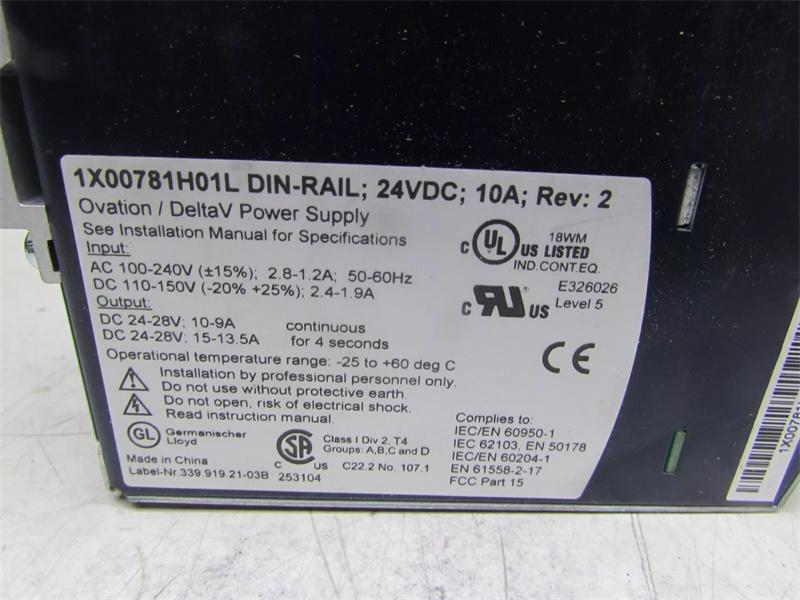

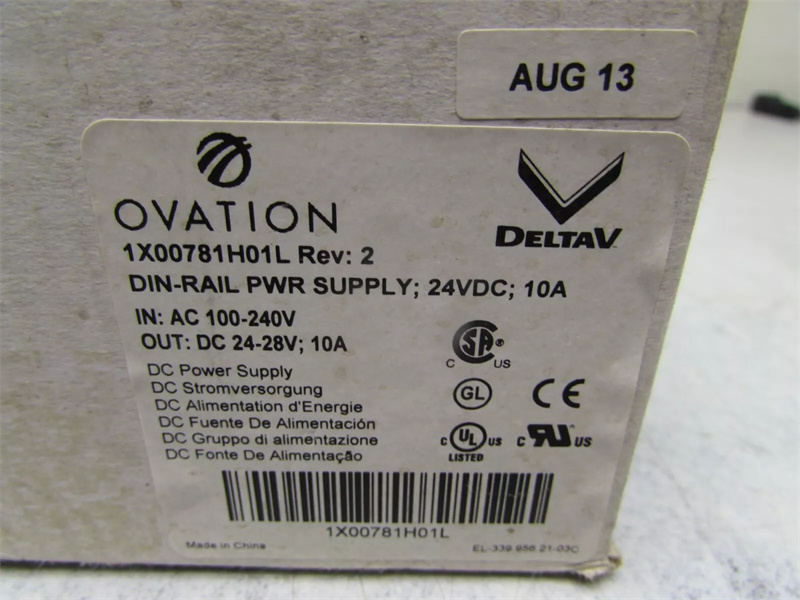

1X00781H01L Emerson Ovation Din-rail Power Supply 24vdc

Description:

Overview
Emerson has developed a DIN-rail mounted power supply incorporating four modular fanless powering systems to provide reliable and stable power to the Ovation™ controller and I/O modules.The Ovation controller powering system uses redundant configurations, each with separate,external wide-range AC and/or DC input feeds. Dual diode auctioneered 24 VDC outputs are used to power each controller chassis and associated I/O modules, as well as loops and contact wetting to the I/O modules. If required a 48 VDC auxiliary power for loops and contact wetting can also be provided.
Two separate output schemes are available:
▪ 24 VDC / 10 A / 240 W main and 24 VDC / 10 A /
240 W auxiliary power
▪ 24 VDC / 20 A / 480 W main and 24 VDC / 20 A /
480 W auxiliary power
Benefits
Benefits of the Ovation power supply scheme include:
▪ Separate main and auxiliary power supplies allow easy replacement
▪ Elimination of cooling fans greatly reduces failure risks
▪ Diode auctioneered power feeds assure continuous power availability
▪ New design increases efficiency, reduces heat and enhances equipment lifeexpectancy
▪ Dual input (AC and DC) capability reduces spareparts
▪ Hot-swappable power supplies enable on-line replacement
▪ Quick installation of the power supplies minimizes downtime and production loss
▪ Power factor correction reduces power consumption

Datasheet Link:

1X00781H01L Emerson Ovation Din-rail Power Supply 24vdc Datasheet
