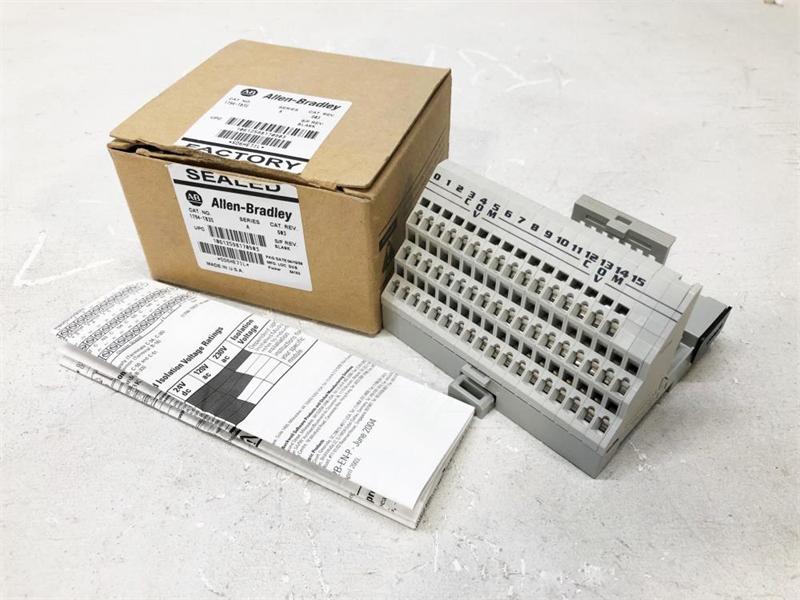

1794-TB3S Allen-Bradley, FLEX I/O Terminal Base Unit

Description:

The Rockwell Automation 1794-TB3S is a component of the FLEX I/O family, designed for industrial automation applications. This terminal base unit is a spring-clamp style, providing a secure and efficient connection for input/output wiring. It is suitable for use in Class I Division 2 Groups A, B, C, D Hazardous Locations and nonhazardous locations. The 1794-TB3S is equipped with a Flexbus connector for communication with other FLEX I/O devices and is designed to be mounted on a DIN rail for easy integration into existing systems.

Key Features:
- Spring-clamp Terminal Base Units: Ensures a secure connection for I/O wiring.
- Flexbus Connector: Enables communication with other FLEX I/O devices.
- DIN Rail Mounting: Facilitates easy installation into standard DIN rail systems.
- Hazardous Location Approval: Certified for use in Class I Division 2 Groups A, B, C, D environments.
- Environmental Ratings: Designed to operate in a wide range of temperatures and humidity levels, suitable for various industrial conditions.

Frequently Asked Questions:

1. What type of terminal base unit is the 1794-TB3S?
The 1794-TB3S is a spring-clamp terminal base unit, providing a secure connection for input/output wiring in FLEX I/O systems.

2. What is the environmental rating for the 1794-TB3S?
The 1794-TB3S is rated for operation in temperatures ranging from -20°C to +70°C (-4°F to 158°F) and relative humidity of 5% to 95% noncondensing, making it suitable for a variety of industrial environments.

3. What is the purpose of the Flexbus connector on the 1794-TB3S?
The Flexbus connector on the 1794-TB3S is used for communication between the terminal base unit and other FLEX I/O devices, allowing for integration into a larger network of I/O components.

Datasheet Link:

1794-TB3S Allen-Bradley, FLEX I/O Terminal Base Unit PDF Datasheet
