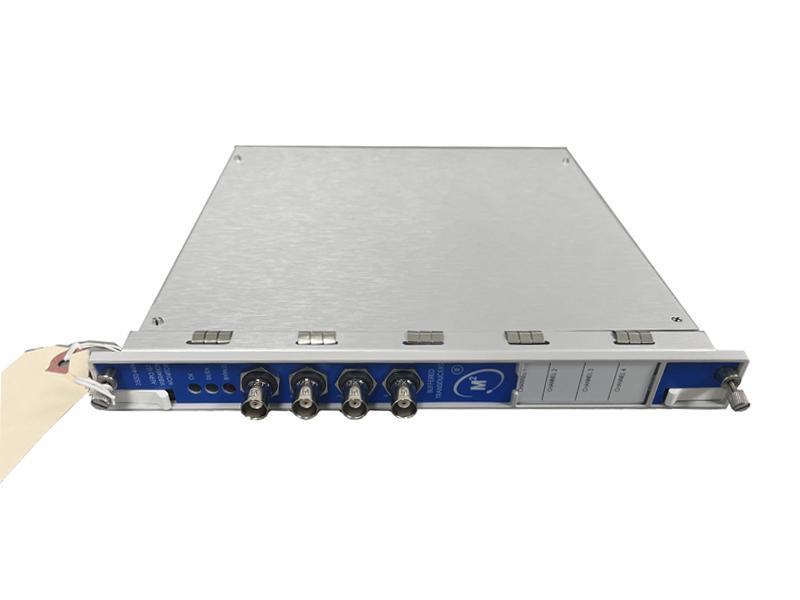

176449-03 Bently Nevada, 3500/44M 8mm, Aeroderivitive GT Vibration Monitor

Description:

176449-03 3500/44M Aeroderivitive GT Vibration Monitor

The 3500/44M Aeroderivitive GT Vibration Monitor is a fourchannel instrument designed for aeroderivative gas turbine applications.  It:
l Continuously monitors machinery by comparing monitored parameters against configured alarm setpoints to drive alarms
l Communicates essential machine information for both operations and maintenance personnel
The 3500/44M 's Aero GT I/O modules interface to Velomitor sensors and accelerometers through Bently Nevada interface modules. The monitor uses the Prox/Velom I/O to interface to our .
Using the 3500 Rack Configuration Software, you can configure the 3500/44M Aeroderivitive GT Vibration Monitor for the following filter options:
l Signal Integration
l 1X vibration tracking
l Band-pass vibration
The 3500/44M Aeroderivitive GT Vibration Monitor accepts input from two separate Keyphasor signals, allowing each channel pair to use a different tracking filter.
You can configure multimode channels to have up to eight sets of alarm parameters including alert and danger setpoints and alarm time delays.
Each set may be configured for a specific machine mode. As the machine changes modes, the monitor can switch to a specific set using contacts on multimode I/O modules or software commands through a communications gateway

Frequently Asked Questions:
1.How about input signals of 176449-03?
Accepts 1 to 4 signals from interface modules (part numbers 86517 and 86497), velomitors and accelerometers

2.How about output Recorder of 176449-03?
+4 to +20 mA Output is proportional to monitor full-scale. One output is provided for each channel. Monitor operation is unaffected by short circuits on recorder outputs.
