Manufacture |
Bently Nevada |
|
Model |
106M1079-01 |
| PN No. |
106M1079-01 |
|
Catalog |
Universal AC Power Supply Module |
|
Description |
3500/15 |
| Origin | U.S.A. |
| HS CODE |
85389091 |
| Dimension |
12*5.8*25 (CM) |
| Weight | 1.4 kg |
Description:

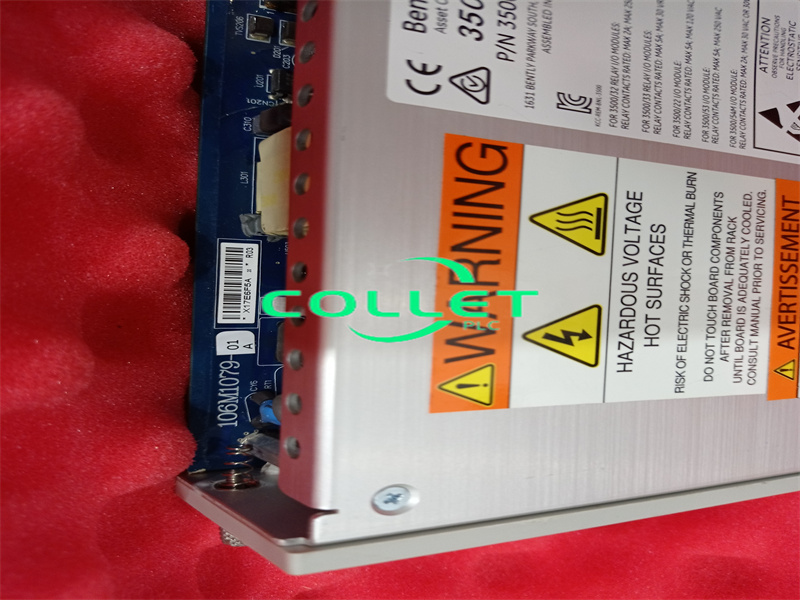

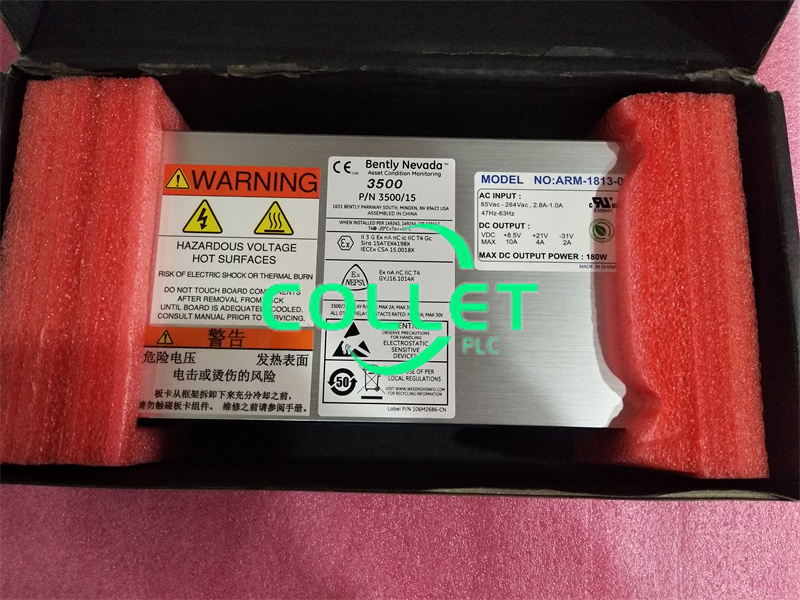

106M1079-01 Bently Nevada, Universal AC Power Supply Modulele
This option uses the universal AC Power Supply and universal AC Power Input Module (PIM).
Input Voltage
110 to 220 Vac nominal
85 to 264 Vac rms
120 to 373 Vac pk
The universal AC Power Supply and Power Input Module are not compatible with the legacy High Voltage AC or Low Voltage AC units.
Input Frequency: 47 to 63 Hz
The 3500/15 Power Supply is a half-height module and must be installed in designated slots on the left side of the rack. The 3500 rack can contain one or two power supplies with any combinations of AC and DC. Either supply can power a full rack.
When two power supplies are installed in a rack, the one in the lower slot acts as the primary supply, and the other in the upper slot acts as the backup supply. If installed, the second supply is the backup for the primary one.
Removing or inserting either power supply module does not disrupt operation of the rack as long as a second power supply is installed.
The 3500/15 Power Supply accepts a wide range of input voltages and converts them to voltages acceptable for use by other 3500 modules. The following power supplies are available with the 3500 Series Machinery Protection System:
- Legacy AC Power
- Universal AC Power
- High Voltage DC Power Supply
- Low Voltage DC Power Supply
Frequently Asked Questions:
1.What operating and storage temperature range does 106M1079-01 support?
Operating temperature: -30 °C to +65 °C
Storage temperature: -40 °C to +85 °C
2.When does the warranty period start?
One year from the time the client receives the goods.
Datasheet Link:
106M1079-01 Bently Nevada, Universal AC Power Supply Module PDF Datasheet
