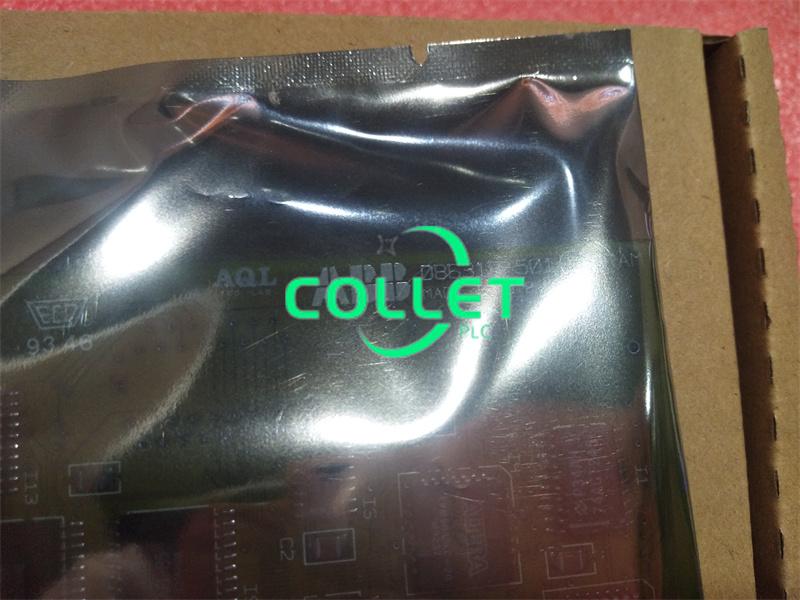

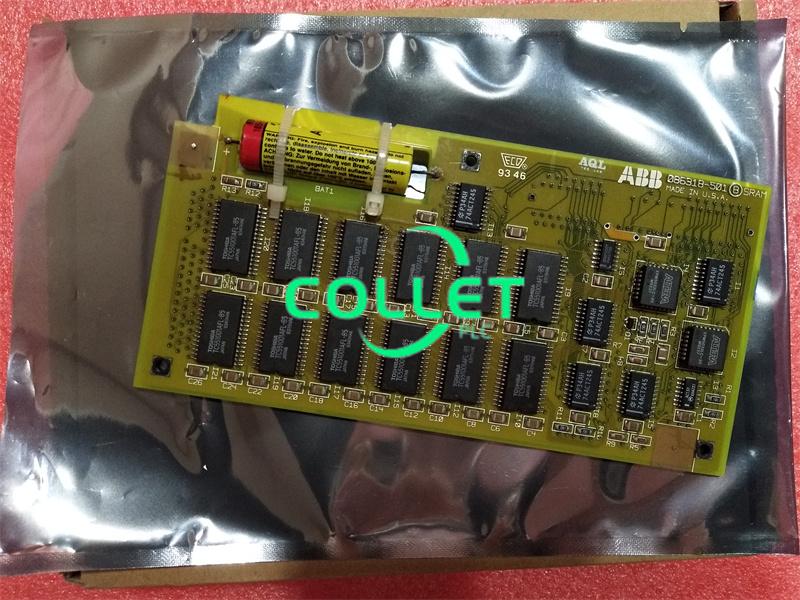

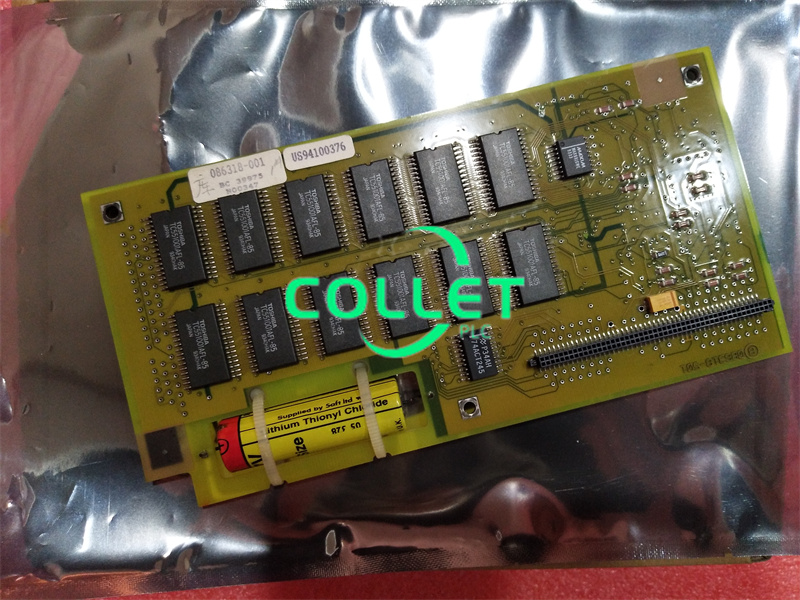

086318-001 ABB 086318-002 MEM. DAUGHTER PCA

Description:

With the introduction of the Smart Color sensor and the ReflectionPlus CoatWeight
sensor, it became necessary to introduce a new ASPC backplane, Part Number
086345-004. Previous updates to the ASPC backplane were all backward
compatible so there is little distinction between Part Numbers 086345-001,
086345-002, or 086345-003. The latest backplane, however, is not backward
compatible. It is important to be able to tell which backplane your scanner has.
Associated with the new backplane are new functional drawings, sensor cables, and
jumper plugs. External wiring for things like sheet break and chiller flow switches
are also different. Make sure you are using the correct documentation associated
with the particular version of backplane in your SP1200.
