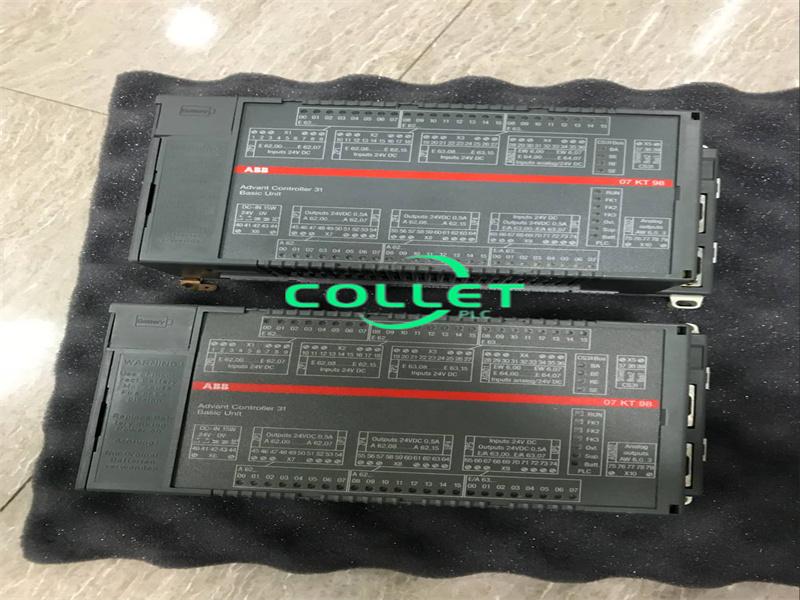

Manufacture |
ABB |
|
Model |
07KT98 |
| PN No. |

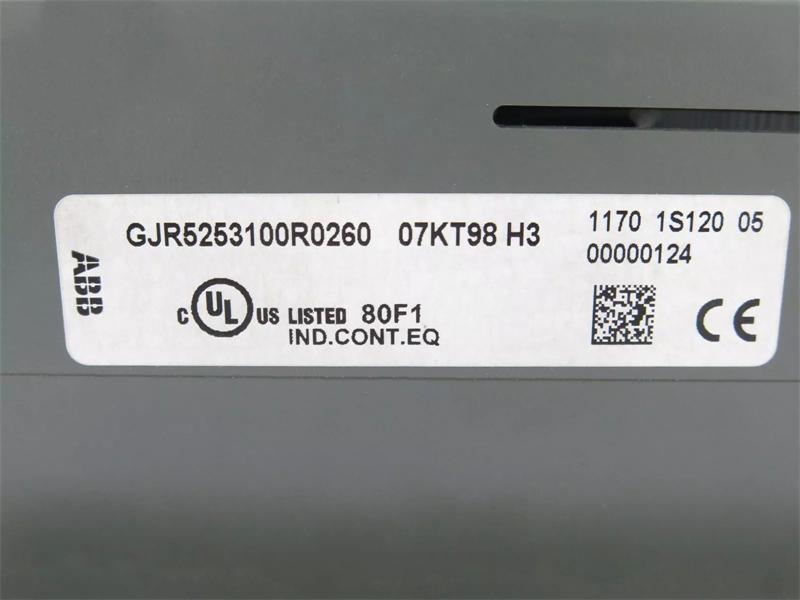

GJR5253100R0260 |
|
Catalog |
Advant Controller 31 |
|
Description |
Basic Unit |
| Origin | Sweden/Malta/India |
| HS CODE |
85389081 |
| Dimension |
20*8*6 (CM) |
| Weight | 0.5 kg |
Description:
Main features• 24 digital inputs with LED displays
• 16 digital transistor outputs with LED displays
• 8 digital inputs/outputs with LED displays
• 8 individually configurable analog inputs 0...10 V, 0...5 V, ±10 V, ±5 V, 0...20 mA, 4...20 mA, differential
inputs, Pt100 (2-wire or 3-wire), the analog inputs are also individually configurable as digital inputs
• 4 individually configurable analog outputs ±10 V, 0...20 mA, 4...20 mA
• 2 counters for counting frequencies up to 50 kHz, configurable in 7 different operating modes
• 1 CS31 system bus interface for system expansion
• 1 interface for connecting communication modules (e.g. 07 KP 90)
• 2 serial interfaces COM1, COM2– as MODBUS interfaces and– for programming and test functions– as freely programmable interfaces
• Real-time clock
• LEDs for displaying operating conditions and error messages
• Detachable screw-type terminal blocks
• Fastening by screws or by snapping the device onto a DIN rail
• The lithium battery 07 LE 90 can be put into the battery compartment in order to– store and backup data which is additionally contained in the RAM, e.g. the status of flags (RETAIN)– backup the time and date (real-time clock)
• RUN/STOP switch for starting and aborting the program execution
• Extensive diagnosis functions– self-diagnosis of the basic unit– diagnosis of the CS31 system bus and the
connected modules
Datasheet Link:
07KT98 ABB GJR5253100R0260 Basic Unit PDF Datasheet
