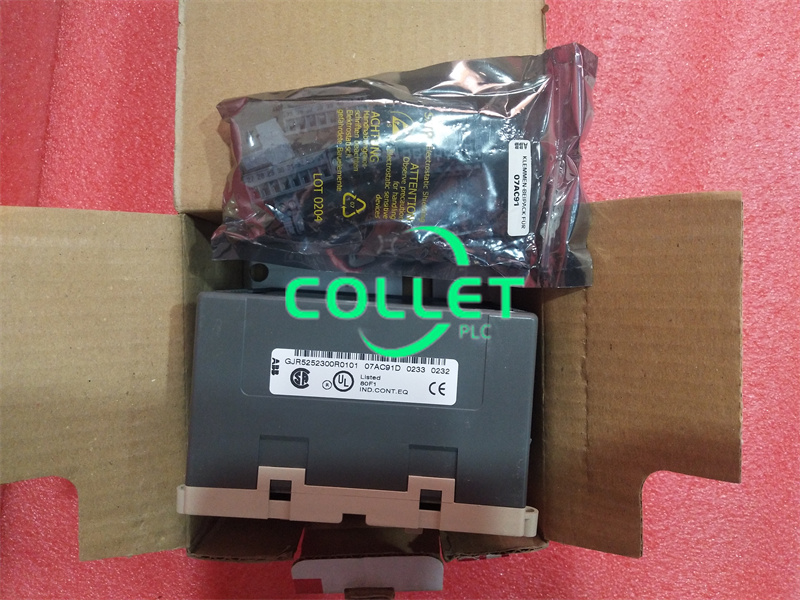

Manufacture |
ABB |
|
Model |
07AC91 |
| PN No. |
GJR5252300R0101 |
|
Catalog |
CS31 |
|
Description |
Analog I/O module |
| Origin | Sweden/Malta/India |
| HS CODE |
85389081 |
| Dimension |
32*22*8 (CM) |
| Weight | 0.4 kg |
Description:
AC31 and previous series (e.g. Sigmatronic, Procontic) are obsolete and were replaced by the AC500 PLC platform.
The Advant Controller 31 series 40-50 offered small and compact PLCs with central and decentralized extensions. The Advant Controller 31 series 90 offered powerful PLCs for challenging applications with various configuration options and up to five communication interfaces. The PLC provided 60 I/Os internally and could be expanded decentrally. The combination of integrated communication fieldbus allowed to connect the PLC to several protocols like e.g. Ethernet, PROFIBUS DP, ARCNET or CANopen.
Both AC31 series 40 and 50 utilized the same AC31GRAF software which conformed to the IEC61131-3 standard. AC31 series 90 utilized the 907 AC 1131 programming software, also developed in accordance with IEC61131-3.
The Advant Controller AC31-S was available for safety-related applications. It was based on the time-proven system structure of the AC31 series 90 variant.
Intended purpose

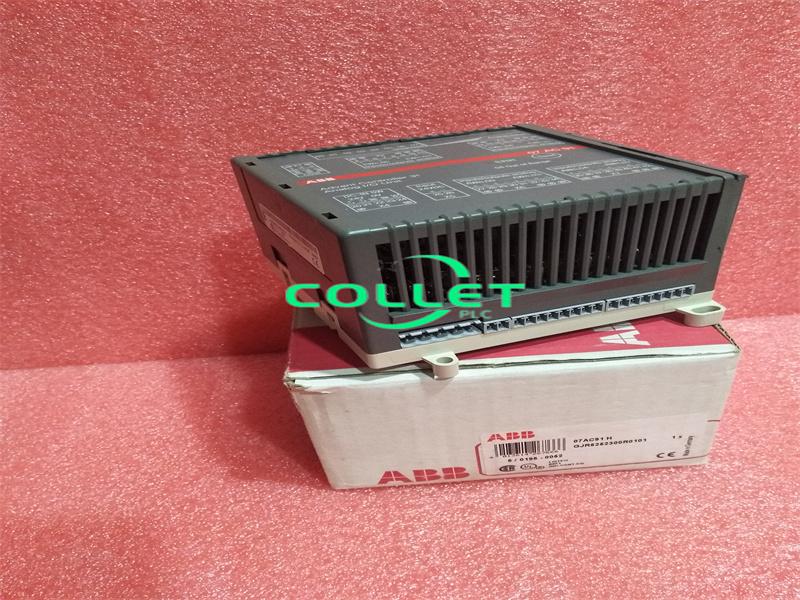

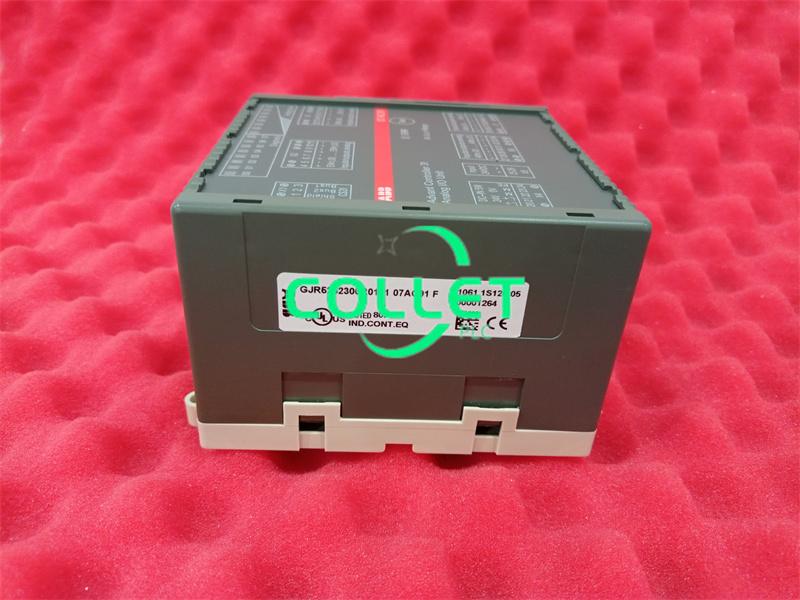

The analog input/output module 07 AC 91 is used as a remote module on the CS31 system bus. It contains 16 analog input/output channels that can be configured in two operating modes:
• Operating mode "12 bits":
8 input channels, individually configurable
±10 V or 0...20 mA, 12 bit resolution plus
8 output channels, individually configurable
±10 V or 0...20 mA, 12 bit resolution
• Operating mode "8 bits":
16 channels, configurable in pairs as inputs or
outputs, 0...10 V oder 0...20 mA, 8 bit resolution
• The configuration is set with DIL switches.
• The PLC offers an interconnection elementANAI4_20 for measuring signals of 4...20 mA (refer
to 907 PC 331, connection element library).
The module 07 AC 91 uses up to eight input words on the CS31 system bus plus up to eight output words. In the operating mode "8 bits", 2 analog values are packed into one word.
The operating voltage of the unit is 24 V DC. The CS31 system bus connection is electrically isolated from the rest of the module.
The module offers a number of diagnosis functions (see chapter "Diagnosis and displays").
Frequently Asked Questions
1.What is the Mounting on DIN rail of a 07AC91?
according to DIN EN 50022-35, 15 mm deep. The DIN rail is positioned centrally between the upper and the lower edges of the module.
2.What is the Installation instructions of a 07AC91?
vertical, connector terminals must point upward and downward
The natural convection cooling must not be blocked by cable ducts or other components installed in the cabinet.
3.How to Connection to the CS31 system bus?
From the rest of the unit by EIA RS-485
