• From the vibro-meter ® product line
• Non-contact measurement system based on eddy-current principle
• Ex certified versions for use in hazardous areas (potentially explosive atmospheres)
• 5 and 10 m systems
• Temperature-compensated design
• Voltage or current output with protection against short circuits
• Frequency response: DC to 20 kHz (−3 dB)
• Measurement range: 2 mm
• Temperature range: −40 to +180 °C

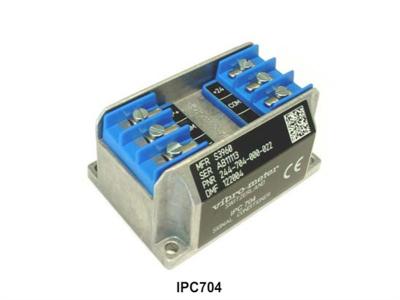

-For CA piezoelectric accelerometers and CP dynamic pressure transducers
-Configurable high-pass and low-pass filters
-Frequency range: 0.5 Hz to 20 kHz
-Optional integrator to give a velocity output
-Optional 2-wire current or 3-wire voltage transmission
-Certified for use in potentially explosive atmospheres
-A range of installation options are available
•16 channel interface card for CMC 16 (Condition Monitoring Card)
• Screw terminal strip (48 terminals)
• Ensures EMI protection for all inputs and outputs
• Provides signal conditioning for all inputs
• First 4 channels can be selected as tacho or dynamic inputs (i.e. vibration)
• Last 12 channels can be selected as dynamic or process inputs
• Channel 16 can be selected as dynamic, process or cold junction compensation input for thermocouples
• Inputs can be routed via VM 600 Raw Bus and Tacho Bus
• On-board isolated Serial RS-485 communication option
• Live insertion / removal of cards
Sensor Signal Converter designed for critical turbo machinery applications such as
steam, gas and hydro turbines, compressors, pumps and fans to measure radial and
axial shaft displacement, position, eccentricity and speed/key
